MD6200

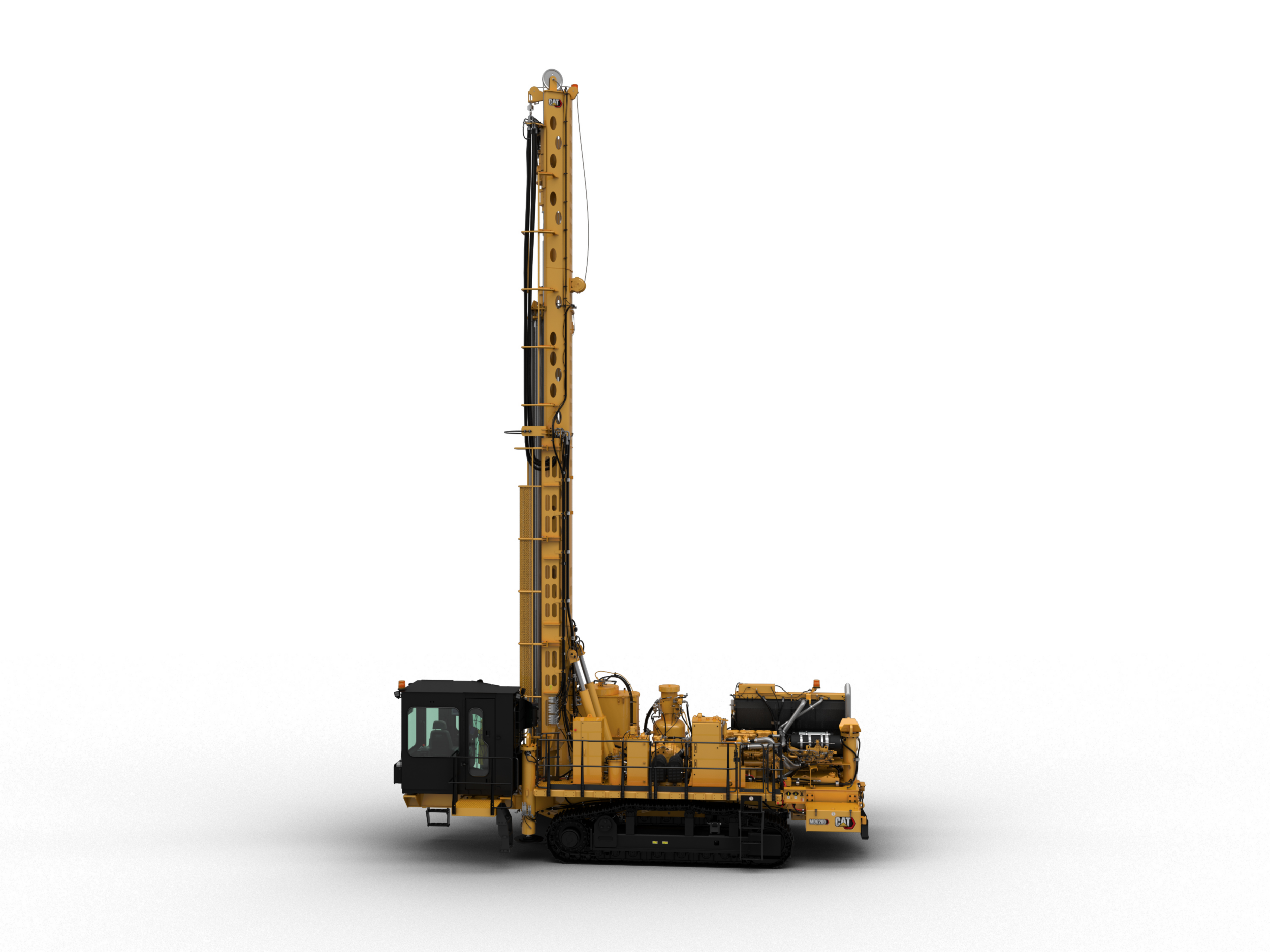

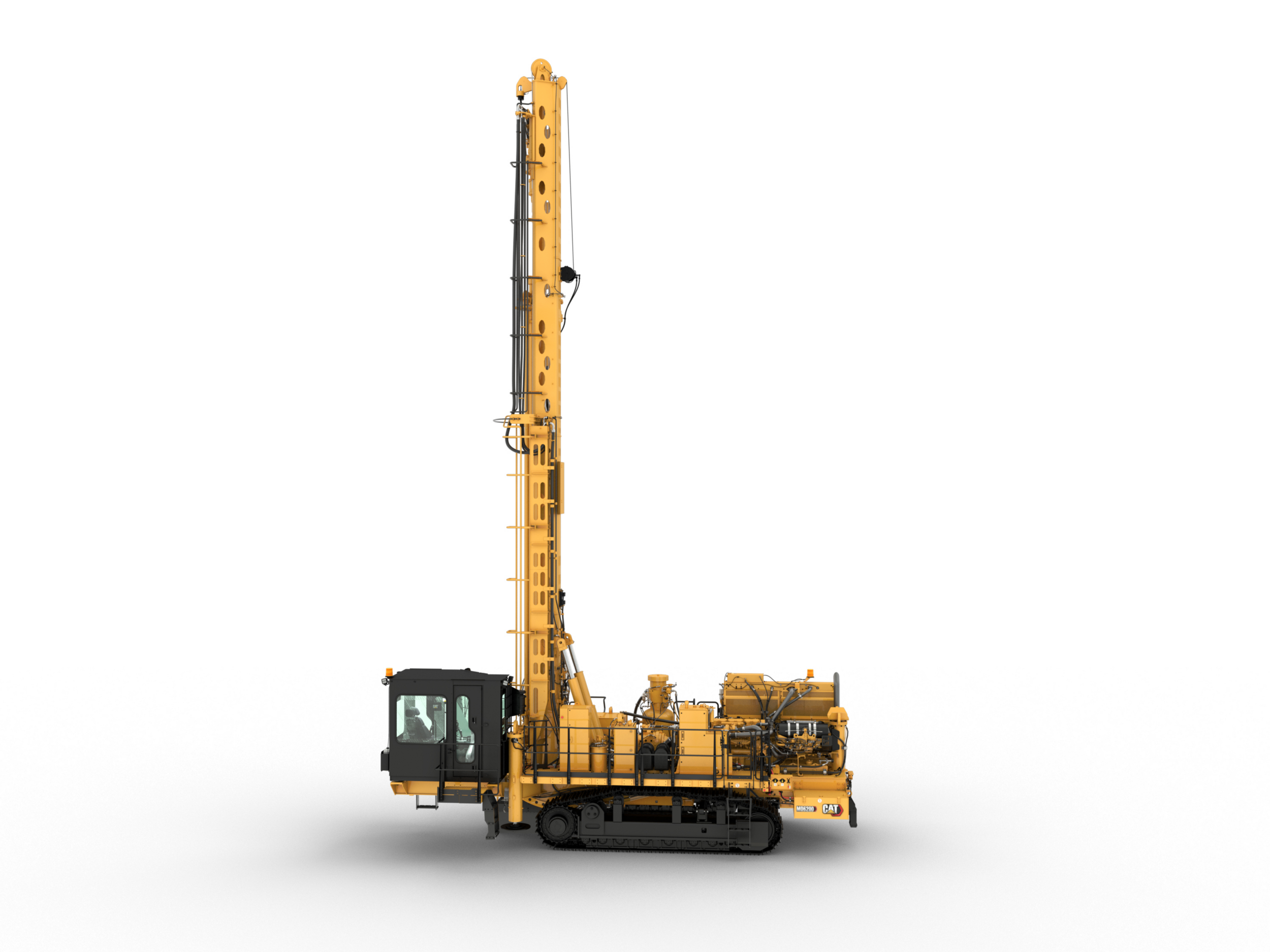

The Cat® MD6200 has the smallest shipping envelope of any drill in its class. It can be transported over the road with the mast on, so it can simply roll onto a truck when it’s time to move to another site. Additionally, its compact working envelope allows it to get it into position faster, reducing the time spent accessing drill patterns and moving between holes. Its oversized Cat 336 excavator-style undercarriage provides best-in-class tractive effort and drawbar pull and stands up to the toughest conditions on your site. Designed to drill holes from 127-200 mm (5.0-7.87 in) in diameter, the MD6200 is is optimized for single-pass or multi-pass drilling in both rotary and down-the-hole drilling modes.
100% Cat Integration
- Cat to the core
- Common parts and components across all Cat drills and consistent design characteristics
- Shared software for autonomous features

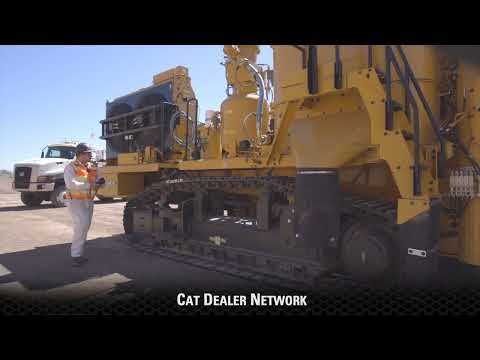

- Cat Dealer Support

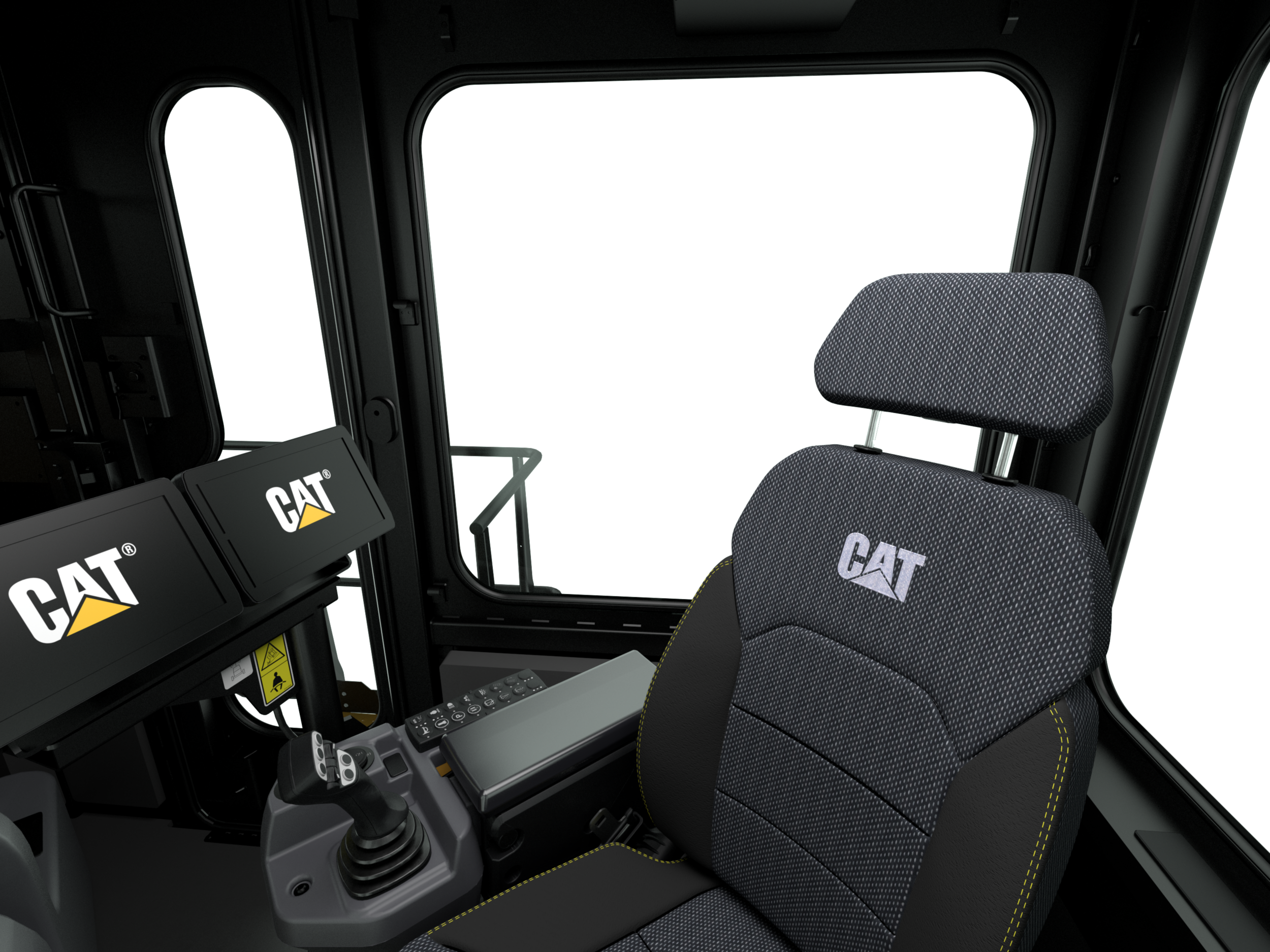

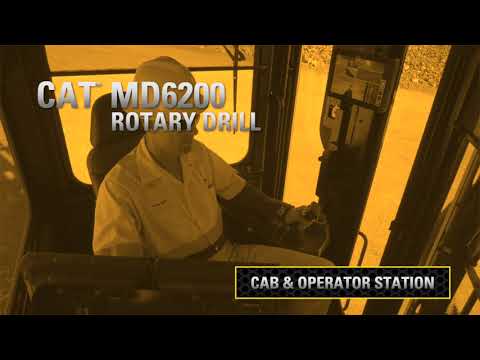

World-Class Operator Station
- Ergonomic controls to help operators stay alert and avoid fatigue
- Multifunction joystick controls and touchscreen monitors are easy to use and intuitive
- Excellent visibility, thanks to multiple cameras and full-length windows
- Optional heated and ventilated seat for enhanced operator comfort
Superior Transportability
- Smallest shipping envelope in its class
- Can be transported over the road with the mast on
- Cat 336 excavator-style undercarriage provides exceptional stability and maneuverability
- Compact working envelope increases productive drill time
- Highly maneuverable from bench to bench or hole to hole
Cat Electronics: Backbone of Machine
- Common electronic architecture across all Cat machines to ensure technician familiarity
- Cat Electronic Technician (Cat ET) enables fast and easy troubleshooting
- Serves as common platform for integrating future autonomy solutions
- Product Link™ Elite provides real-time performance tracking
Technology and Automation

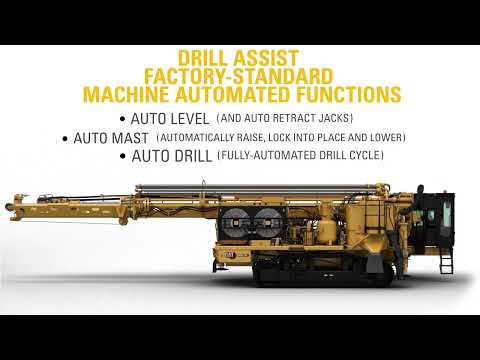

- Integrated Drill Assist functionality, including auto level, auto retract jacks, auto raise and lower mast, and auto drill
- Machine health and performance monitoring keep machine running productively
- Drill depth meter helps reduce over- and under-drilling
- Cat MineStar™ Terrain for drilling data is integrated into existing cab monitors (requires Terrain license purchase)
Matched Powertrain
- Variable air volume for reduced fuel consumption
- C18 engine matched to hydraulics and compressor for increased efficiency
- High- and low-pressure configurations offer variable volume air control
- Reduces stand-by pressures while machine idles
Positive - And Negative - Angle Drilling
- Angle drill from 30 degrees to -15 degrees (in 5-degree increments)
- Negative-angle drilling (vertical to -15 degrees) helps you tackle such specialty projects as ramp and access development, sink shots and limited pre-split drilling
- Positive-angle (30 degrees to vertical) for production drilling
Safety
- Three standard cameras and large windows give the operator excellent visibility
- Slip-resistant surfaces for safer ingress/egress and service
- MineStar Command for drilling enables remote or autonomous operation — removing operator from the machine
- LED interior lights and backlit joysticks and keypads
- Spot and flood lights positioned to illuminate paths for ingress/egress and major service points
Sustainability
- Designed to use less fuel, which reduces engine emissions
- Tier 4 Final engines reduce NOx and particulate matter
- Reduced waste and lower owning and operating costs thanks to increased commonality of systems and components, plus a reduction in unique part numbers
- Longer maintenance intervals that decrease the amount of waste contributed to the environment
