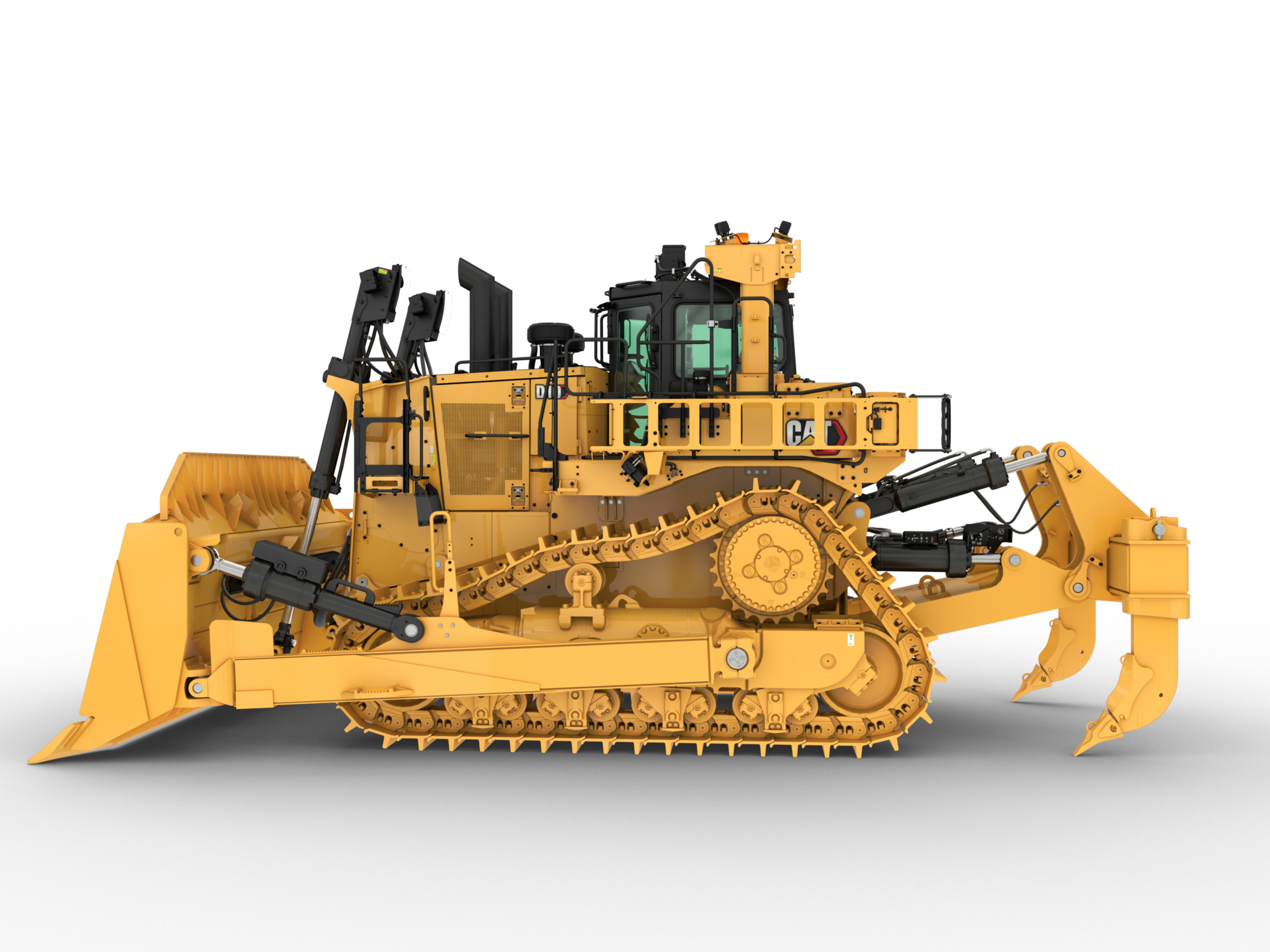

D10
The Cat® D10 Dozer is innovative by design — developed by a team of experts who follow a design approach that incorporates feedback from the field with industry-leading technologies to deliver a dozer that continues to advance with every model. The new D10 is no exception. It’s more efficient, so it burns less fuel. It’s more serviceable, so you’ll experience less downtime. It’s more durable, so you’ll spend less over its lifetime. And it’s more productive — so you’ll spend less time putting more profitability to your bottom line.
PERFORMANCE & EFFICIENCY
- The torque converter with stator clutch automatically frees up the stator when torque multiplication is not required under low load, resulting in higher drivetrain efficiency for reduced fuel consumption.
- High-horsepower reverse speeds up non-productive traveling for faster cycle times and up to 8% higher productivity.
- The high-efficiency load-sensing hydraulic system improves hydraulic implement response and fuel efficiency.
- The in-cab multifunction touchscreen display is the operator’s gateway to monitoring machine performance and a convenient way to modify machine parameters to tailor performance to the current task.
OPERATOR COMFORT

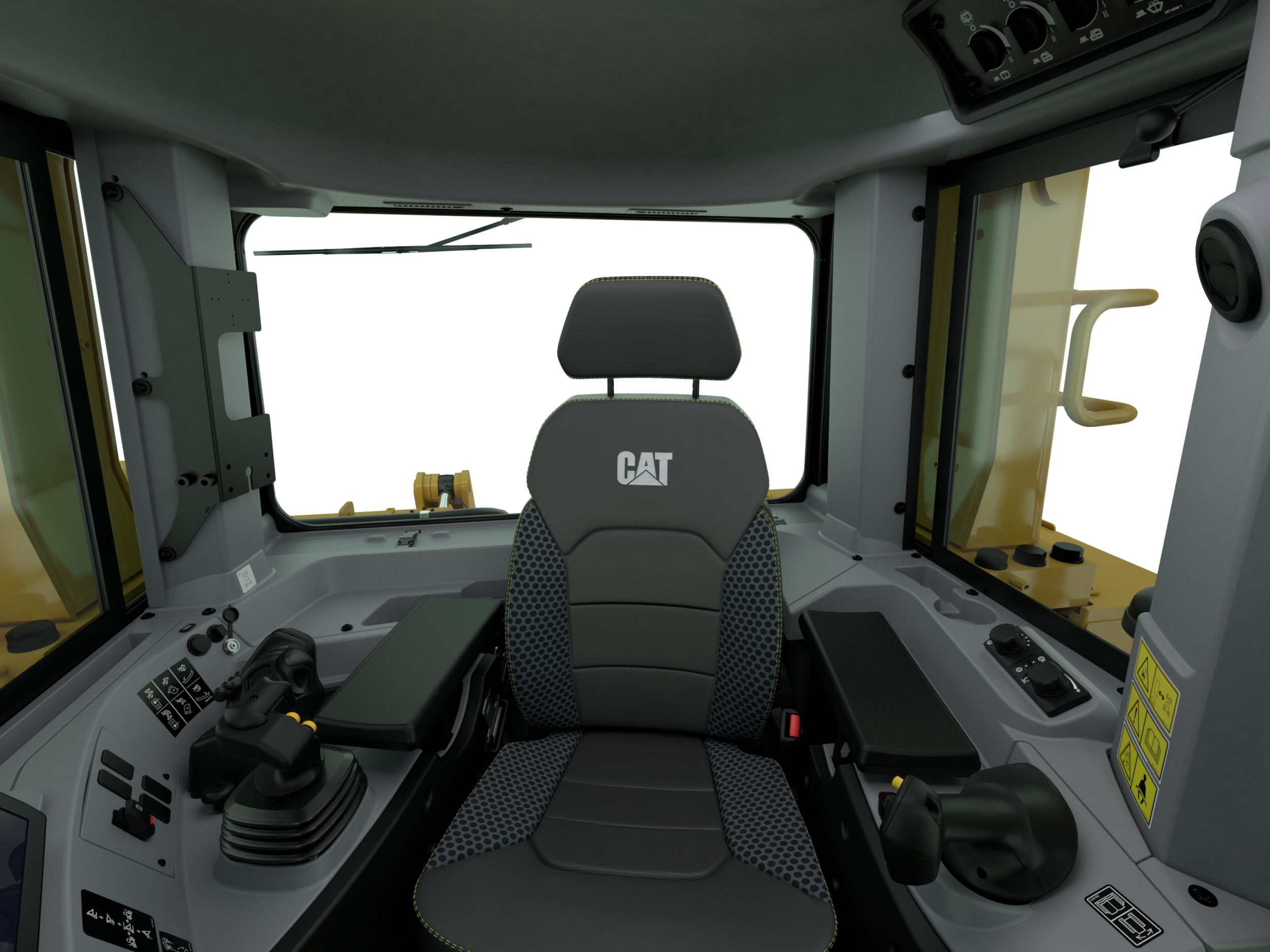

- The cab is unparalleled, with enhanced ergonomics, a fully adjustable air suspension seat and and controls that are easy to access and operate.
- The suspended undercarriage absorbs impact and reduces shock loads transferred to the operator by up to 50% for a smoother, more comfortable ride.
- The automatic climate control system automatically adjusts heating and air conditioning controls to maintain a consistent temperature throughout the day.
- Low-effort electronic steering, ripper and dozer controls are easily accessible and provide sure, precise maneuvering.
SAFETY
- The operator station offers an exceptional viewing area, with a tapered hood, notched fuel tank, and narrow ripper carriage to give the operator a clear line of sight to front and rear work areas.
- The optional 360 Vision camera system and in-cab display further enhance visibility.
- An optional powered ladder with lockout protection improves access and egress.
- Ground-level access, forward-hinging cab door, removed lift cylinder grease points and secondary retention on hinged belly guards provide a greater level of safety for service personnel.
PRODUCTIVITY
- The in-cab touchscreen Information Display is larger, faster, and more powerful with increased memory and intuitive menu structure.
- The optional Work Monitor screen collects machine data and provides real-time feedback on machine performance to optimize productivity.
- Standard Dual Tilt allows the operator to optimize blade pitch angle, improving load control and making it possible to carry material instead of only pushing it.
- The C27 engine automatically switches engine power settings based on direction of travel, delivering 20% more power in reverse for reduced cycle times.
TECHNOLOGY & INNOVATION
- Standard Dual-Tilt Automated Blade Assist (ABA) increases efficiency while reducing operator workload, making use of preset blade pitch positions for the load, carry and spread portions of the cycle.
- AutoCarry™ (optional) automates blade lift to maintain desired blade load, improve load consistency and reduce track slip.
- Automatic Ripper Control (optional) automatically controls ripper height to limit track slip, reducing operator fatigue.
- Optional Cat Grade Control 3D uses dual ROPS-mounted GNSS antennas and in-cylinder sensors to provide precise positioning of the cutting edge.
CAT MINESTAR™ SOLUTIONS
- The D10 comes out of the factory ready to integrate Cat MineStar™ technology, which takes accuracy, efficiency and safety even further.
- MineStar Command for dozing offers multiple levels of remote control and even semiautonomous operation, helping increase operator safety and comfort—as well as the productivity of the dozer fleet.
- MineStar Terrain with Automatic Blade Control feature provides full automatics, full blade load and overcut protection integrated into the machine control system.
- MineStar Terrain for grading monitors ore bodies, bench heights, cycle times and volume of material cut and filled. Inputs from the office tell operators where to dig or cut, how much material to move, when they’ve moved enough and even if they’ve moved too much.
SERVICEABILITY
- Fully integrated Cat AutoLube Solution
- Replaceable push-arm trunnion bearing inserts
- Large engine oil sump with 50% more capacity, enabling extended oil change intervals and higher average oil quality.
- Single plane cooling system paired with large radiator access covers for improved core cleaning.
- Remote Flash software allows updates to be performed remotely
BLADES & ATTACHMENTS
- The perfect match for the D10, Cat blades are aggressive in tough materials and offer superior loadability.
- Work-tool options are available for applications requiring high-capacity blades for light materials.
- Cat blades have the ability to resist torsional bending and distortion and offer increased wear resistance without sacrificing machine balance or performance.
- Specialty attachments include single-shank ripper, multi-shank ripper and counterweight.
BUILT TO GO THE DISTANCE
- Increased oil pan capacity improves oil quality and engine life.
- The single plane cooling system reduces heat load for longer component life.
- The frame, powertrain and main components are built to be rebuilt for a cost-effective second life of like-new performance at a fraction-of-new price.
SUSTAINABILITY
- The D10 is designed to use less fuel, which reduces engine emissions
- The Tier 4 Final engine reduces NOx and particulate matter, plus the engine is compatible with diesel fuel blended with lower-carbon intensity fuels such as biofuels and renewable fuels.
- Features like extended life filters and longer maintenance intervals decrease the amount of waste contributed to the environment.
- By rebuilding machines and components, the Cat Rebuild and Cat Reman programs preserve raw materials, conserve energy and reduce emissions. In addition, retrofits and upgrades for older machines incorporate efficiency improvements and emission reductions, and keep them in production longer to conserve energy and minimize the need for raw materials.
- Increased commonality of systems and components, plus a reduction in unique part numbers, reduces waste and lowers owning and operating costs.
