HP Body – 797F

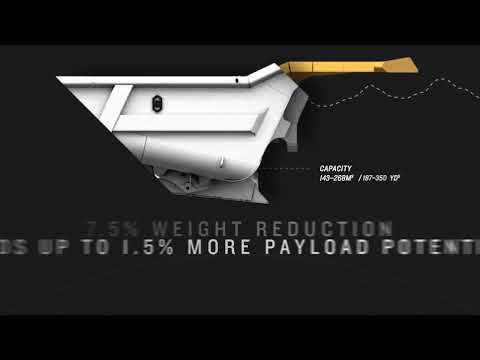

The Cat© High Performance (HP) Body is a blend of lightweight design and durability for high payload potential and long life. A canopy with overhead coverage plus perimeter reinforcement from the rear rib through the top rail adds strength and durability. Patented floating bolsters and spring plates replace welds in high stress areas, improving durability. Thick base plates reduce the need for heavy liners. Curved front and side transitions minimize carryback, while a kick-up at the tail provides material retention and offers the highest available dump clearance.
Capacity
252-268 m3 (330-350 yd3)
Base Body Weight
44 300-44 900 kg (97,600-98,900 lbs)
Life Expectancy
40k+ hours
Machine Model
797
Material Application
All ferrous and non-ferrous material, overburden
Ideal Site and Maintenance Application
Blend of durability, payload and versatility
Base Body Weight, Standard Configuration
44 300 kg (97,600 lbs)
Liner Weight, Typical
1 226 kg (2,703 lbs)
Liner Material
450-500 BHN
Liner Options
Tumbler bar, smooth plate, impact
Dump Clearance
1.9 m (6 ft 4 in)
Heated or Non-Heated
Not applicable
