336

Cab Monitor Improvements


1.  Continuously improved user interface allows for intuitive navigation, minimizing performance interruption with the easy-to-use touchscreen menu.

2. Identify apps quickly with a grid list view, abbreviated app names, and categorized menu options.

3. A new notification center keeps important information visible to the operator, and displays messages without shrinking the camera view.

4. Color coded notifications set critical messages apart from the rest.

5. Use the in-monitor QR code to learn about machine technology and features through a full suite of "how-to" videos.

Operator Coaching


1. Operator Coaching is an in-cab system that recognizes specific opportunities for operators to be more productive and prevent unnecessary machine wear and tear.

2.  After detecting inefficient or restricted actions, the system alerts the operator and provides insight into the inefficiency and steps to improve.

3. Paired with a VisionLink® Productivity subscription, this information and other Operator Coaching insights can be viewed from anywhere.




• Standard integrated vehicle health management system alerts the operator with service guidance and parts needed to enhance uptime.

• Optional Cat Detect - People Detection helps the operator with service guidance and parts needed to enhance uptime.

• Enhance visibility to make service work easier and safer with optional inspection lighting.

Not all features are available in all regions. Please check with your local Cat dealer for specific offering availability in your area.
Build Number: 08C




• The C7.1 twin turbo engine reliably delivers power to the pumps for maximum production.

• The electrohydraulic system responds quickly and efficiently to the task at hand.

• Match the excavator to the job with three power modes – Power, Smart, and Eco. Power mode is maximum power all the time. Smart mode automatically matches engine and hydraulic power to digging conditions, providing maximum power when needed and reducing power when it isn’t to help save fuel. Eco mode reduces engine speed and keeps it constant to reduce fuel consumption.




• Boost productivity up to 45% versus traditional grading with standard Cat Grade with 2D system – includes indicate-only and laser capability.​

• Want a 3D system to improve your digging results? Caterpillar's single antenna global navigation satellite system (GNSS) makes it easy by giving you visual and auditory guidance to grade. Plus, you can create and edit designs on the touchscreen monitor while you’re on the job. If your application calls for a dual antenna system, it’s easy to upgrade.​

• Upgrade to our dual antenna GNSS for maximum grading efficiency. The system lets you create and edit designs on the touchscreen monitor while you’re on the job, or you can have the plan design sent to the excavator to make your work easier. Plus, you get added benefits of avoidance zones, cut and fill mapping, lane guidance, and augmented reality along with advanced positioning capability.​

• Standard Grade Assist helps you stay on grade – simply and effortlessly – with single-lever digging.​

• Dig with guidance to depth, slope, and horizontal distance to grade. You can set up to four different depth and slope targets to help save time and money.​

• Automatically stop excavator swing at operator-defined set points in truck loading and trenching applications with Swing Assist.​

• Cat Payload helps you achieve precise load targets to improve your operating efficiency. Pick up a load of material--with a bucket and thumb combination or grapple and clamshell attachments--and get a real-time weight estimate without swinging.​

• Combine Payload with VisionLink® and remotely manage your production targets.​

• Operator Coaching is an in-cab system that recognizes specific opportunities for operators to be more productive and prevent unnecessary machine wear and tear.




• ​VisionLink® provides actionable data insights for all assets - regardless of fleet size or equipment manufacturer.* Review equipment data from your desktop or mobile device to maximize uptime and optimize assets. Dashboards provide information such as hours, miles, location, idle time, and fuel utilization. Make informed decisions that lower costs, simplify maintenance, and improve safety and security on your jobsite.​

• VisionLink® Productivity gathers and summarizes machine telematics and jobsite data from all your equipment – regardless of the manufacture.* View actionable information such as idle time, fuel burn, location, payload, load counts, total cycles, and more to improve machine efficiency, productivity, and utilization. Access data anywhere via a mobile, tablet, or desktop device - on or off the jobsite.​

• Cat® Inspect is a mobile application that allows you to easily perform digital preventative maintenance (PM) checks, inspections, and daily walkarounds. Inspections can easily be integrated with other Cat data systems like VisionLink® so you can keep a close eye on your fleet.​

• Remote Troubleshoot is a mobile application that allows your Cat dealer to perform diagnostic testing on your connected machine remotely to help ensure that issues are resolved quickly and with less downtime.​

• Remote Flash is a mobile application that allows you to update onboard software without a technician being present, allowing you to initiate software updates when convenient, increasing your overall operating efficiency.​

• The Cat PL161 attachment locator allows you to track attachments across all worksites, reduce the number of lost attachments, and plan for attachment maintenance and replacement. The work tool recognition feature automatically adjusts machine settings based on the selected tool.​



* Data field availability can vary by equipment manufacturer.​




• Reinforced structures ensure long-term durability in harsh environments.

• Work up to 4500 m (14,764 ft) above sea level.

• Standard high-ambient temperature capability is 52° C (125° F) with cold start capability at –18° C (0° F).

• Auto hydraulic oil warmup gets you to work faster in cold temperatures and helps prolong the life of components.

• Two levels of filtration protect the engine from low-quality diesel fuel.

• Grease sealed between track pins and bushings reduces travel noise and prevents debris from entering to increase undercarriage life.

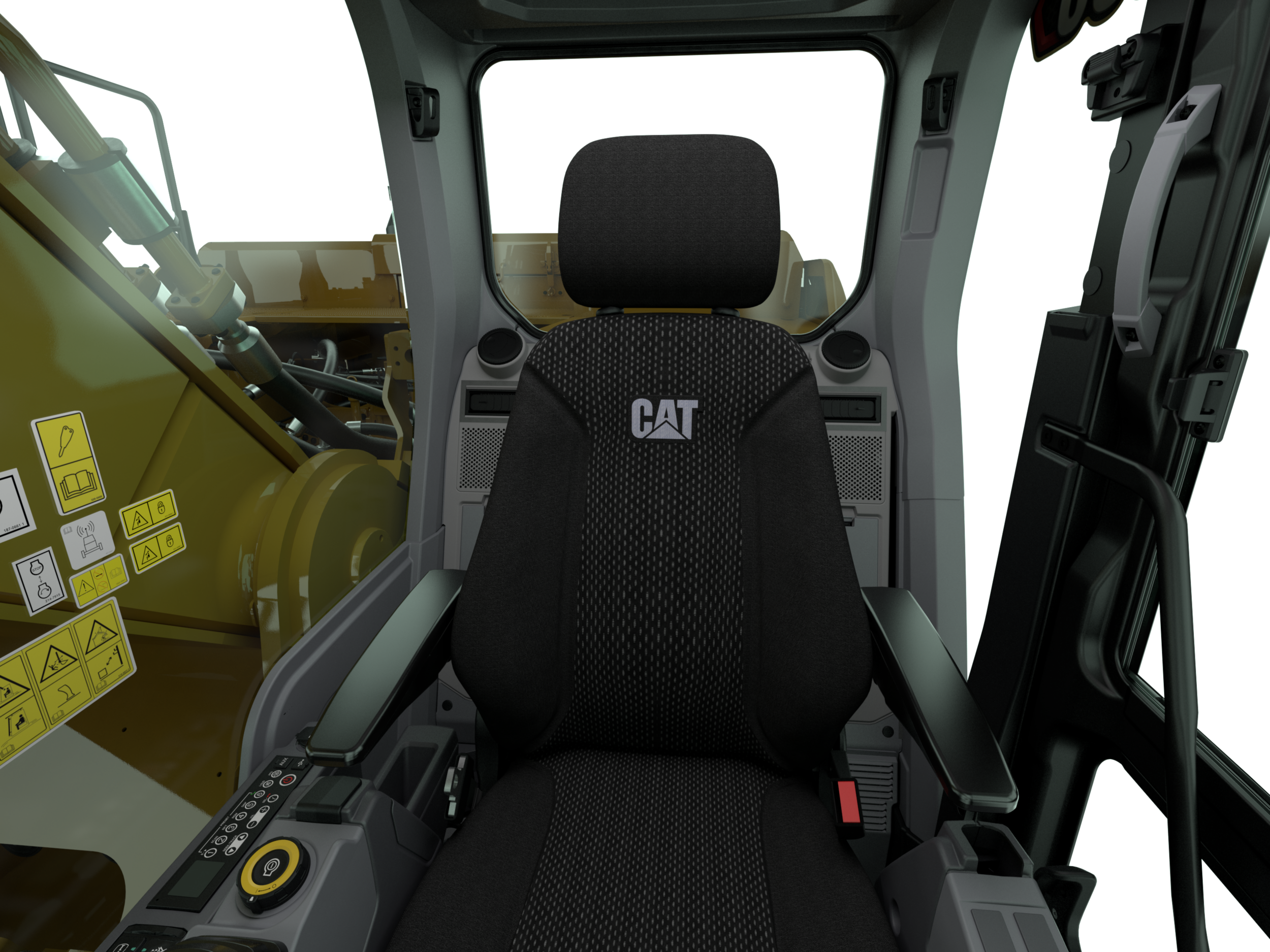

• Choose between Deluxe and Premium cabs – both with automatic climate control.

• Deluxe cab comes with heated seat to keep you warm.

• Premium cab comes with heated and ventilated seat for year-round comfort.

• Tilt-up left console enables easy entry and exit.

• Control the excavator comfortably with easy-to reach controls all located in front of you.

• Stow your gear with plenty of in-cab storage beneath and behind the seat, overhead, and in the consoles.

• Use the standard radio’s USB ports and Bluetooth® technology to connect personal devices and make hands free calls.




• 2D E-Fence prevents the excavator from moving outside of operator-defined set points; the system works with thumb and bucket combinations along with hammer, grapple, and clamshell attachments.

• Cat Detect - People Detection helps protect the most valuable asset on any jobsite – people. The system uses smart cameras with depth sensors to provide the operator with visual and auditory alerts so he or she can take immediate action when a person is too close to the excavator.

• Enhance jobsite safety by adding Cat Command to your fleet. The remote control system comes with everything you need like WIFI radio, cameras, and microphone so you can work outside of the cab and avoid potential hazards.

• The Rollover Protective Structure (ROPS) cab meets industry standards and protects the operator in the event of a rollover.

• Enjoy great visibility with the help of narrow cab pillars, large windows, and a flat engine hood design.

• Make service work easier and safer with optional inspection lighting. With the flip of a switch, lights will illuminate the engine, pump, battery, and radiator compartments to enhance visibility.

• Cat Lift Assist helps you avoid tipping by letting you know if your load is within the excavator’s safe working range.

• A travel direction indicator helps you know which way to activate travel levers.

• Enhance jobsite safety by adding a swing alarm to alert people when you're rotating from trench to stockpile and back again.

• Keep your excavator secure with Operator ID. Use your PIN code on the monitor to enable the push button starting feature.

• A ground-level shutoff switch stops the engine and machine from operating.

• Serrated steps and anti-skid punch plate on the service platform help prevent slipping.

• A rearview camera is standard.




• Start the engine with the push of a button; use a Bluetooth key fob or Operator ID passcode.

• Program each joystick button, including power mode, response, and pattern, using Operator ID; the machine will remember what you set each time you go to work.

• Trouble cutting through tough material? Auto dig boost gives you an automatic power increase of 8 percent when you need it for better bucket penetration, shorter cycle times, and greater payloads.

• Need more lift during your shift? Auto heavy lift gives you 8 percent more power exactly when you need it for as long as you need it.

• Make moving the excavator much easier with optional Cat Stick Steer. Simply push a button and use one hand to travel and turn instead of both hands or feet on levers or pedals.

• Make operating easier with the touch of a joystick button. An auxiliary relay allows you to power on or turn off a CB radio, beacon light, and even a dust suppression watering system without taking your hands off the joysticks.

• Cat continues to improve user interface functionality for operators of all skill levels. The touchscreen monitor is an easy-to-use operating tool that presents the jobsite dashboard with an intuitive format. Productivity applications are displayed in grid-view to read on-the-go, and touchscreen navigation is programmed to make sure job performance continues without any hold ups.

• Protect your hammer from overworking. Auto hammer stop warns you after 15 seconds of continuous firing and then automatically shuts it off after 30 seconds – all to prevent wear and tear on the attachment and excavator.

• Not sure how a function works or how to maintain the excavator? Always have the operator’s manual at your fingertips in the touchscreen monitor.




• Boost productivity with proactive service reminders. Our integrated vehicle health management system alerts the operator with step-by-step service guidance along with parts needed so you don't experience any unnecessary downtime.

• Expect less maintenance cost due to 1,000 hour engine oil interval.

• Change all fuel filters at a synchronized 1,000 hours. Filters are grouped and located on right-hand side of machine for easy maintenance.

• Check hydraulic system oil and easily drain fuel system water and fuel tank water from ground level.

• The air intake filter with pre-cleaner has high dust holding capacity.

• The hydraulic oil filter provides superior filtration; anti-drain valves keep oil clean when the filter is replaced.

• The high-efficiency hydraulic fan has an optional automatic reverse function to keep cores free from debris, eliminating the need for any operator interaction.

• S∙O∙S^SM ports are on ground level, simplifying maintenance and allowing for quick, easy extraction of fluid samples for analysis.


• The Cat® C7.1 TTA engine meets U.S. EPA Tier 4 Final, EU Stage V, and Japan 2014 emission standards.

• Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels** up to: 20% biodiesel FAME (fatty acid methyl ester)* or 100% renewable diesel, HVO (hydrogenated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details.

• Cat Grade technologies combine advanced guidance with optional automated machine control helping you reach grading targets while reducing fuel burn and greenhouse gas emissions by improving efficiency, job site productivity, and accuracy.

• Auto engine speed control reduces unnecessary fuel burn and greenhouse gas emissions by allowing the engine to automatically go into idle mode when the machine is not working.

• Cat® Payload for excavators provides on-the-go material weighing, which helps reduce fuel burn by improving loading efficiency, jobsite productivity, and eliminating trips to the scale.

• Cat® 2D E-fence keeps the front linkage within a predefined work area to avoid hazards such as traffic - not only helping keep personnel safe but also helps you avoid repairs, downtime, and costly job site fines.

• Extended maintenance intervals not only reduce downtime but decrease the amount of fluid and filters that are replaced over the life of the machine.

• Cat VisionLink® displays the CO2 emissions for monitored assets, calculated by fuel type for the runtime fuel burned each day in a selected date range.

• Remote Flash minimizes downtime and maintenance time while keeping your asset running with maximum efficiency. Alerts for machine updates are sent virtually from your Cat dealer and updates can be deployed without a dealer technician needing to be onsite.

• Remote Troubleshoot decreases maintenance time and keeps your machine running with maximum efficiency by allowing your Cat dealer to virtually test the machine while working. Once a problem is identified, a technician can fix it the first time, saving time and money.

*Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer).
**Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels.
