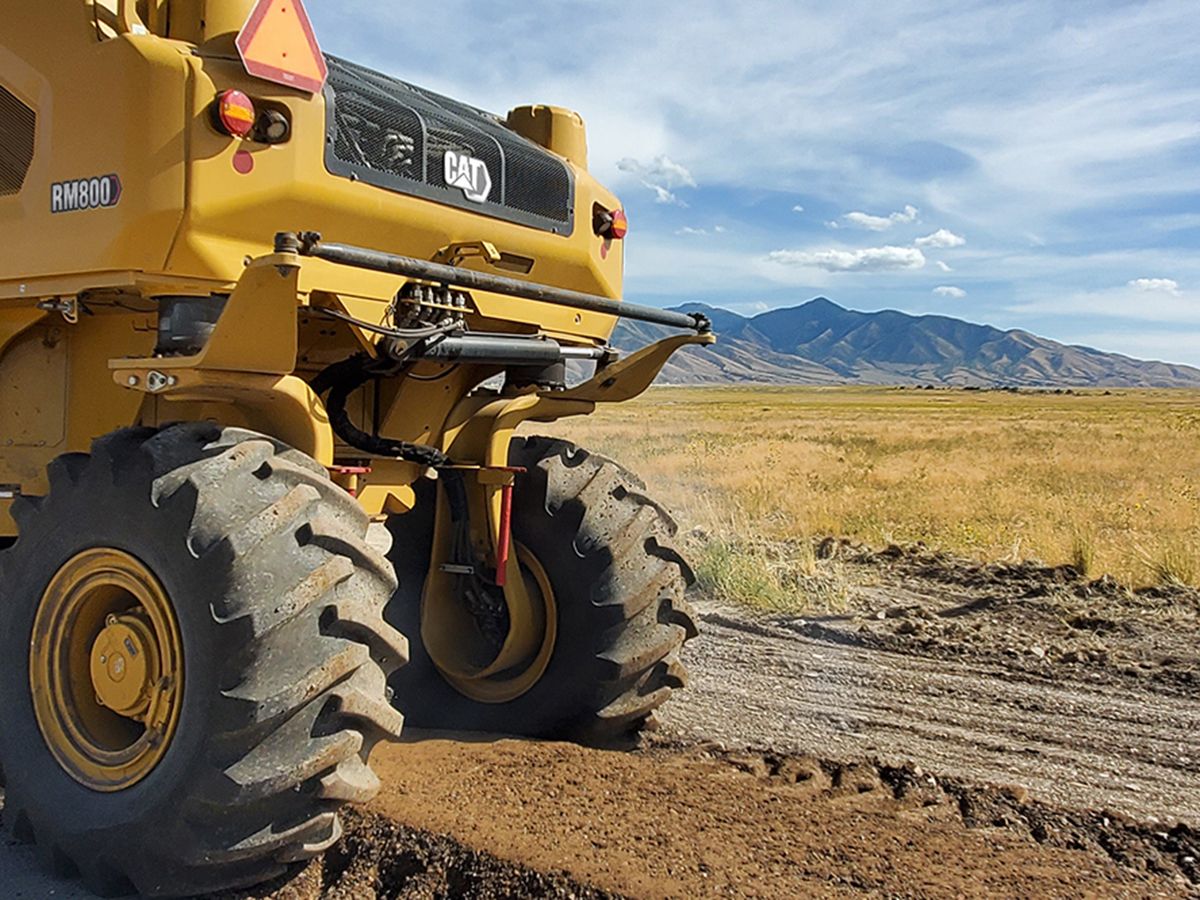

RM800 reclaimer/stabilizer
RM800 reclaimer/stabilizer
RM800 reclaimer/stabilizer
RM800 reclaimer/stabilizer
RM800 reclaimer/stabilizer
RM800 reclaimer/stabilizer
RM800 reclaimer/stabilizer mixing soil.
Cat System K rotor configured with paddles provide material sizing in Full Depth Reclamation applications
The RM800 reclaimer/stabilizer using water spray system.
The RM800 reclaimer/stabilizer can maneuver in tight spaces.

RM800 – Tier 2

The Cat® RM800 Reclaimer/Stabilizer is designed for full-depth reclamation and soil stabilization projects. Get the versatility you need for a variety of applications and terrain with outstanding maneuverability. A powerful Cat engine and intuitive machine operation deliver superior mix quality. Easily maintain precision with convenient productivity features in a comfortable operator environment that optimizes visibility. Power combined with advanced machine controls deliver performance to keep you productive all day long.

FIND LOCATION

Efficient Power and Performance

  • Powerful Cat® C18 engine meets U.S. EPA Tier 2 and EU Stage II emission standards
  • Wheels positioned on the corners of the machine provide the smallest inside and outside turning radii to help you maneuver in tight spaces, enhanced by four steering modes: Front wheels only, rear wheels only, crab steering, and coordinated steering
  • Front to rear weight distribution provides stability in tough cuts
  • 8.72 m (28.61 ft) overall machine length enhances productivity and maneuverability in compact spaces
  • Four height adjustable legs provide up to 14% (8 degrees) of positive or negative slope on either side when working on uneven terrain or to maintain traction in challenging soil stabilization applications
  • A belt-driven rotor provides flush cut capability on the right-hand side
  • Standard electronically controlled all-wheel drive maximizes traction and mobility
Cat RM600 Reclaimer/Stabilizer

Maximize Productivity and Mix Quality from the Cab

  • Advanced electronic controls with automatic load control deliver ideal mix quality by keeping the rotor at the proper depth and the machine at an optimized speed for production efficiency
  • Utilize the full range of rotor speeds without ever leaving your seat
  • Instantly modify material gradation by adjusting the front and rear mixing chamber doors and an easy-to-read indicator on the touch screen display informs the operator of door positions
  • Rear rotor chamber door float feature simplifies operation, allowing the operator to select desired down pressure
  • Exit and Return-to-cut features help operators save time and maintain consistency with the simple tap of a button
  • A multi-function joystick puts speed, rear steering and primary rotor controls at your fingertips
Cat RM600 Reclaimer/Stabilizer

Superior Visibility and Operator Comfort

  • Standard FOPS cab with heating and air conditioning for a comfortable work environment
  • Sight lines are optimized with the full left-to-right sliding cab
  • Operator visibility to the cutting path is enhanced with floor to ceiling glass and an angled pane on the right-hand side provides a clear view to the leading edge of the cutting chamber
  • A heated, 180° positioning, air-ride suspension seat with high visibility seat belt is equipped with fore and aft adjustment increasing operator comfort and visibility
  • Touch screen displays can be adjusted to optimize viewing angle
  • Performance and safety can be augmented with standard and optional cameras that are viewed on large, in-cab displays:
  1. Fore and aft visibility is enhanced with front and rear mounted cameras with on-screen configurable guidance lines
  2. Obstacle avoidance and gradation results can be viewed with cameras mounted above the front and rear mixing chamber doors
  3. Visibility to each side of the machine can be supplemented with an upgrade to side mounted cameras
  • Convenience features include audio-ready with speakers, USB ports for charging, 12V DC outlets, storage in rear, overhead and console compartments, and phone, cup and bottle holders
Cat RM600 Reclaimer/Stabilizer

Simple to Operate, Easy to Learn

  • Easily match machine functions with gradation specifications through the 25 cm (10 in) color touch screen displays and push button controls
  • Precise machine control is delivered through hand-wheel and joystick steering
  • Controls are ergonomically located and grouped by function for quick and easy access
  • Start the engine with a push button; use a Bluetooth key fob or the Operator ID passcode to recall saved operator preferences and profiles upon login
Cat RM600 Reclaimer/Stabilizer

Meet Specifications with Precision

  • Meet mix design specifications with precision using optional water and emulsion additive systems
  • Additive application rate is monitored with a computerized metering system for accuracy
  • Customize spraying width by turning spray nozzles on or off through the touchscreen display in the cab
  • Spray bars conveniently slide out on either side for inspection, cleaning and service
  • A wide range of variable flow rates can be optimized for a variety of applications:
  1. Water flow rates from 30-1900 liters per minute (8-500 gallons per minute)
  2. Emulsion flow rates from 30-850 liters per minute (8-225 gallons per minute)
  • Emulsion Spray System is capable of delivering bitumen emulsion or water with self-cleaning nozzles to reduce maintenance and provide a consistent spray pattern
  • Easily set up the spray system to deliver liquid additives according to specifications:
  1. manual or automatic
  2. volume per m2 (yd2)
  3. percent of material density
Cat RM600 Reclaimer/Stabilizer

Durable and Dependable Cutting System

  • The rotor drive system features a hydraulically-actuated, heavy-duty dry clutch that does not require adjustment
  • Electronically-controlled drive line protection
  • Two high tensile, six-rib belts with automatic belt-tensioning to prevent slippage
  • Bi-directional cutting capability
  • Durable, high-strength, variable volume cutting chamber
  • Visual indicators inform ground personnel of cutting depth and leading edge of the rotor when avoiding obstacles
Cat RM600 Reclaimer/Stabilizer

Cat System K Rotor for Reclamation and Stabilization

  • Deliver superior material quality on a variety of projects with the versatile System K rotor that uses proven toolholder and base block components from our cold planer System K rotor
  • Components are manufactured with abrasion-resistant, high-strength alloys to withstand tough, high-power applications
  • Tools are precisely placed on the rotor to deliver ideal material sizing and homogeneous mixing results
  • The versatile Cat System K rotor can be configured with bolt-on Paddle or Wedge toolholder protection
  1. Paddles provide additional material sizing in Full Depth Reclamation applications
  2. Wedges reduce drag in soil stabilization and reclamation applications
  3. Components can be rotated 180° for extra life
  • Triple-tree cutting bit placement on rotor ends cleans up loose material and reduces wear on the rotor caused by maneuvering in the cut
  • Replaceable toolholders can be selected for use with 20 or 22 mm shank bits and offer multiple methods for bit removal
  • A tapered dual-retention tool holder design secures toolholders in place without a setscrew or bolt, speeding up replacement and eliminating the need for fasteners or torquing
  • Bolt-on toolholder protection, endring segments and endring wear protection plates eliminate the need for grinding and welding, simplifying reconditioning
Cat RM600 Reclaimer/Stabilizer

Easier Service, More Uptime

  • Daily checkpoints and service access are centrally located on a secure platform for improved safety and efficiency
  • Monitor fluid conditions with regular sampling to help extend change intervals up to 500 hours engine oil, 6000 hours hydraulic oil and 12000 hours coolant
  • The auto-reversing cooling fans help prevent debris build-up extending maintenance intervals for cleaning the cooling package
  • A standard compressed air system with two access points speeds up rotor bit changes by powering pneumatic tools and can be used for general machine cleaning and maintenance
  • Ground-level controls and optional hydraulically powered rotor turning with pendant simplify bit replacement and rotor cleaning
  • A service door on each side of the rotor chamber provides easy access to inspect or change endring bits without having to reach inside the rotor chamber to service
  • Optional high-pressure wash system for convenient clean-up
  • Built-in diagnostics monitor machine systems, alert the operator of performance issues and provide troubleshooting information
  • Operate select machine functions during maintenance and service with the accessory drive system
  • Electrical system wiring is color-coded and numbered for easy identification and wrapped in a protective, abrasion-resistant nylon braid for longer life
  • VisionLink® is a cloud-based software application that seamlessly provides data to your desktop or mobile device, taking the guesswork out of fleet management with key insights to maximize performance – regardless of fleet size or equipment manufacturer
  • Remote Troubleshoot connects the machine to your Cat dealer to diagnose and solve problems virtually and if service is required, a Technician comes prepared with the right tools and parts the first time, reducing downtime
  • Remote Flash works around your schedule to ensure your machine’s software is up to date for optimal performance and uptime
Cat RM600 Reclaimer/Stabilizer

Sustainability

  • Cat engines equivalent to U.S. EPA Tier 2 and EU Stage II are compatible with diesel fuel blended with the following lower-carbon intensity fuels up to: 20% biodiesel FAME (fatty acid methyl ester) or 100% renewable diesel, HVO (hydrogenated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details.
  • Engine Idle Speed Management helps maximize fuel efficiency and reduce greenhouse gas emissions by elevating engine speed to an intermediate idle to complete specific tasks and returning to low idle when finished.
  • Automatic Load Control helps you save fuel and reduces greenhouse gas emissions by automatically matching propel speed to engine load for maximum production at peak efficiency
  • Electronically controlled All-Wheel Drive with Traction Control maintains consistent traction to increase machine efficiency, helps reduce fuel burn and greenhouse gas emissions
  • Performance and safety can be augmented with standard and optional cameras that are viewed on large, in-cab displays
  • Extended maintenance intervals not only reduce downtime but decrease the amount of fluid and filters that are replaced over the life of the machine
  • Cat Scheduled Oil Sampling (S•O•S℠) Services helps reveal excessive wear, contaminated fluids or other “unseen” issues that can shorten component life. In many cases, you can extend oil and coolant change intervals by using fluid monitoring. Consult your Cat dealer or the machine's operation and maintenance manual for more information.
  • The engine, hydraulic system and Diesel Exhaust Fluid (DEF) tank (if required) are equipped with ecology drains for easy servicing and to help prevent spillage
  • Don't waste fuel idling. Cat VisionLink® online fleet monitoring helps you manage idle time and reduce fuel burn and greenhouse gas emissions
  • VisionLink displays the CO2 emissions for monitored assets, calculated by fuel type for the Runtime Fuel Burned each day in a selected date range
  • Remote Troubleshoot decreases maintenance time and keeps your machine running with maximum efficiency by allowing your Cat dealer to virtually test the machine while working. Once a problem is identified, a technician can fix it the first time, saving time and money.
  • Remote Flash minimizes downtime and maintenance time while keeping your asset running with maximum efficiency. Alerts for machine updates are sent virtually from your Cat dealer and updates can be deployed without a dealer technician needing to be onsite.
Cat RM600 Reclaimer/Stabilizer
