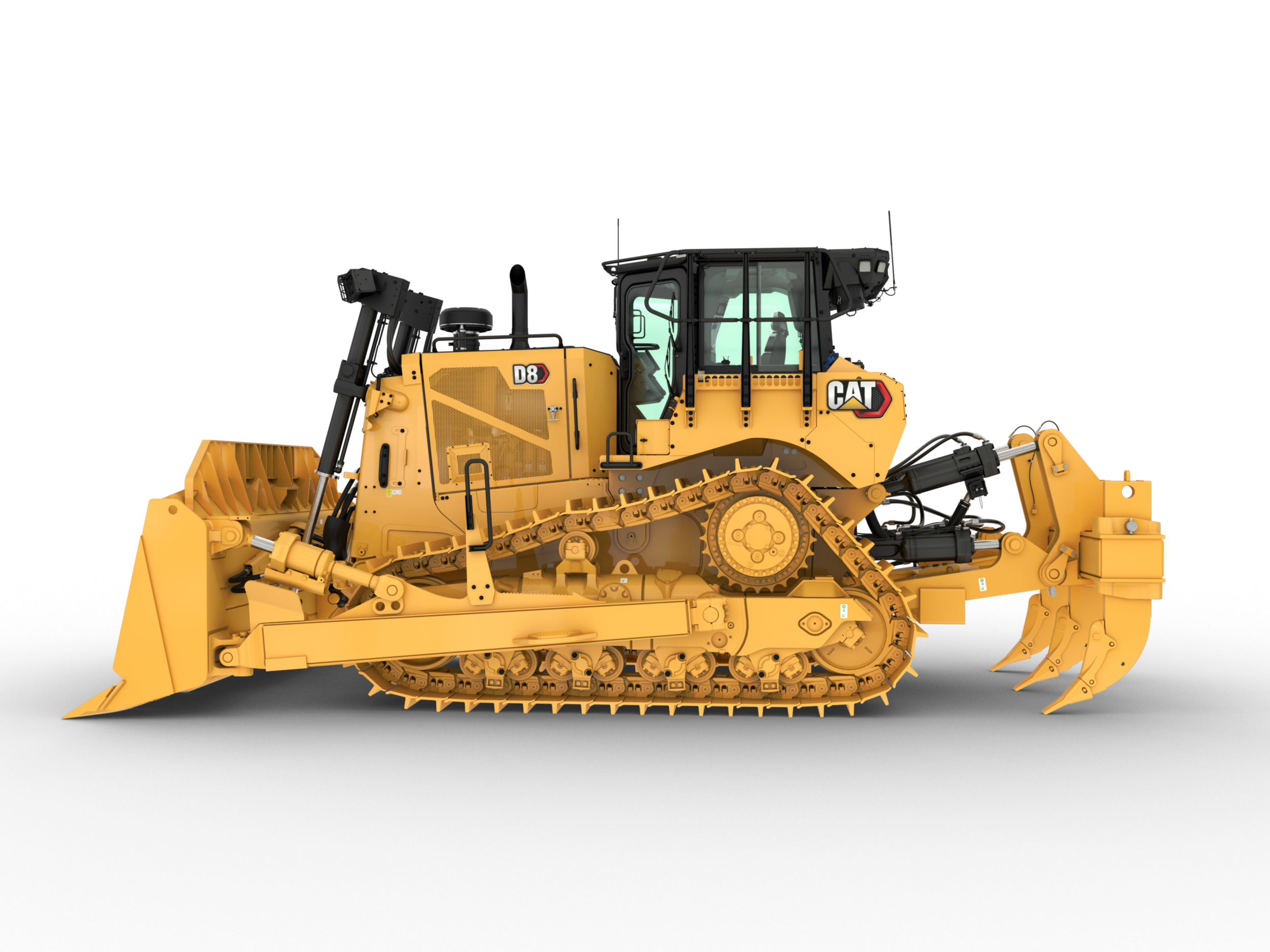

D8
The Cat® Next Generation D8 dozer delivers renowned performance you expect, with the added benefit of next generation technology. A fully automatic, 4-speed transmission makes efficient operation easy, without having to manage gear shifts. The broadest range of technology features in the industry work together seamlessly to help you make the most of your equipment investment. Common interface and controls from the D5 through D8 make it easy to operate different machine sizes.
NEXT GENERATION PERFORMANCE
- Fully automatic 4-speed powershift transmission continuously adjusts for maximum efficiency and power to the ground without added operator input.
- Next Generation cab for the D8 means common controls and interface for all D5-D8 machines, making operators more efficient across multiple dozers.
- Blades are right sized to the machine to help you get jobs done in fewer passes.
- Elevated sprocket gives you better ride and balance, plus more penetration force.
- Long undercarriage is standard, with more track at the rear of the machine for superior dozing performance.
- Outfit your dozer from the factory to take on the challenges of slot dozing, ripping, fine grading, and more.
OPERATOR HELPERS
- Standard Assist features can reduce operator inputs up to 45%*.
- Cat Assist with Attachment Ready Option (ARO) features include:
- Stable Blade works seamlessly with operator inputs to help produce a smoother surface when operating manually.
- Traction Control automatically reduces track slip to save you time, fuel and track wear.**
- AutoCarry™ automates blade lift to help you maintain consistent blade load and reduce track slip.**
- Blade Load Monitor gives you real-time feedback on current load versus the optimal blade load based on your ground conditions. Actively monitors machine load and track slip to help you reach optimal pushing capacity.**
- Cat Grade with Slope Assist automatically maintains pre-established blade position without a GNSS/GPS signal ─ no additional hardware or software needed. For machines with 3D, operators can easily switch back and forth from full 3D automatics to Slope Assist.
- Steer Assist automates track and blade tilt steering. Helps reduce operator fatigue by automatically maintaining straight travel with light loads or heavy loads on flat ground and side slopes. Helps reduce steering inputs up to 75%. No GNSS/GPS required.
- Slope Indicate is included in the main machine display and shows side slope and uphill/downhill grades to help operators with slope work.
- Attachment Ready Option (ARO) provides wiring and mounting provisions for dealer installation of Grade with 3D, Accugrade, UTS, or other grade control systems.
- AutoRip automates ripper raise/lower and shank in/out to maximize ripping productivity.
- Application Profile lets you save machine settings based on application or operator preference. Utilize any of the default profiles defined by our expert operators or customize profiles for various jobs or multiple operators.
- Operator ID allows you to save custom touchscreen setup, machine settings, and to track individual operator productivity, safety and training opportunities via Product Link.
- Machine Security – Passcode helps prevent theft and unauthorized operation by requiring an operator to enter an ID to start the machine.
**Feature not operational indoors or in areas where a GNSS/GPS signal is not available.
UPTIME COUNTS
- Cab can be removed in about 30 minutes.
- Easy access without tools under the cab floor if needed.
- Option to install Cat Grade with 3D hardware from the factory eliminates shop time later.
- Reduce downtime with Read/Write Remote Troubleshoot, allowing dealer technicians to diagnose more issues remotely, saving time on service calls.
- Keep safety at the forefront with additional camera options for enhanced visibility around the machine.
- Platform with guard rail makes refueling and DEF (Diesel Exhaust Fluid) fill safe and convenient.
- Elevated sprocket makes cleanout easier and provides convenient, modular service.
- Reversing hydraulic demand fan helps remove debris while you work, saving cleanout and maintenance time.
- Longer life LED lights help save you time and money.
COMFORT AND VISIBILITY
- Common cab, interface, and controls with D5 through D8, raising the bar for comfort, productivity, and straightforward operation across dozer models.
- Integrated Rollover Protective Structure (ROPS) and next generation cab design provides 17% improved visibility.*
- Easy-to-use 254 mm (10 in.) touchscreen main display.
- Standard, high-definition rearview camera shows prominently in the main display when in reverse.
- Key Features Help, built into the display, gives you an overview of machine and technology features and helpful operating tips.
- Wide air suspension seat has multiple adjustments for personalized comfort. Armrest adjusts independent of the seat.
- Distributed cab heating/cooling circulates air effectively around the operator and helps reduce window fogging/frosting.
- Ample storage spaces throughout the cab.
- Convenient USB and Auxiliary power ports in cab.
BUILT-IN DURABILITY
- Elevated sprocket protects major components from shock loads.
- Heavier frame and structures for added durability.
- Cat C15 engine eliminates Exhaust Gas Recirculation (EGR) system for greater reliability; Simplified with a single engine Electronic Control Module (ECM).
- Redesigned fuel system provides greater reliability and more accurate fuel delivery.
- New Heavy Duty Extended Life undercarriage— HDXL with DuraLink™ — provides more seal life in high impact conditions.
- Heavy-duty batteries for more cold-cranking power.

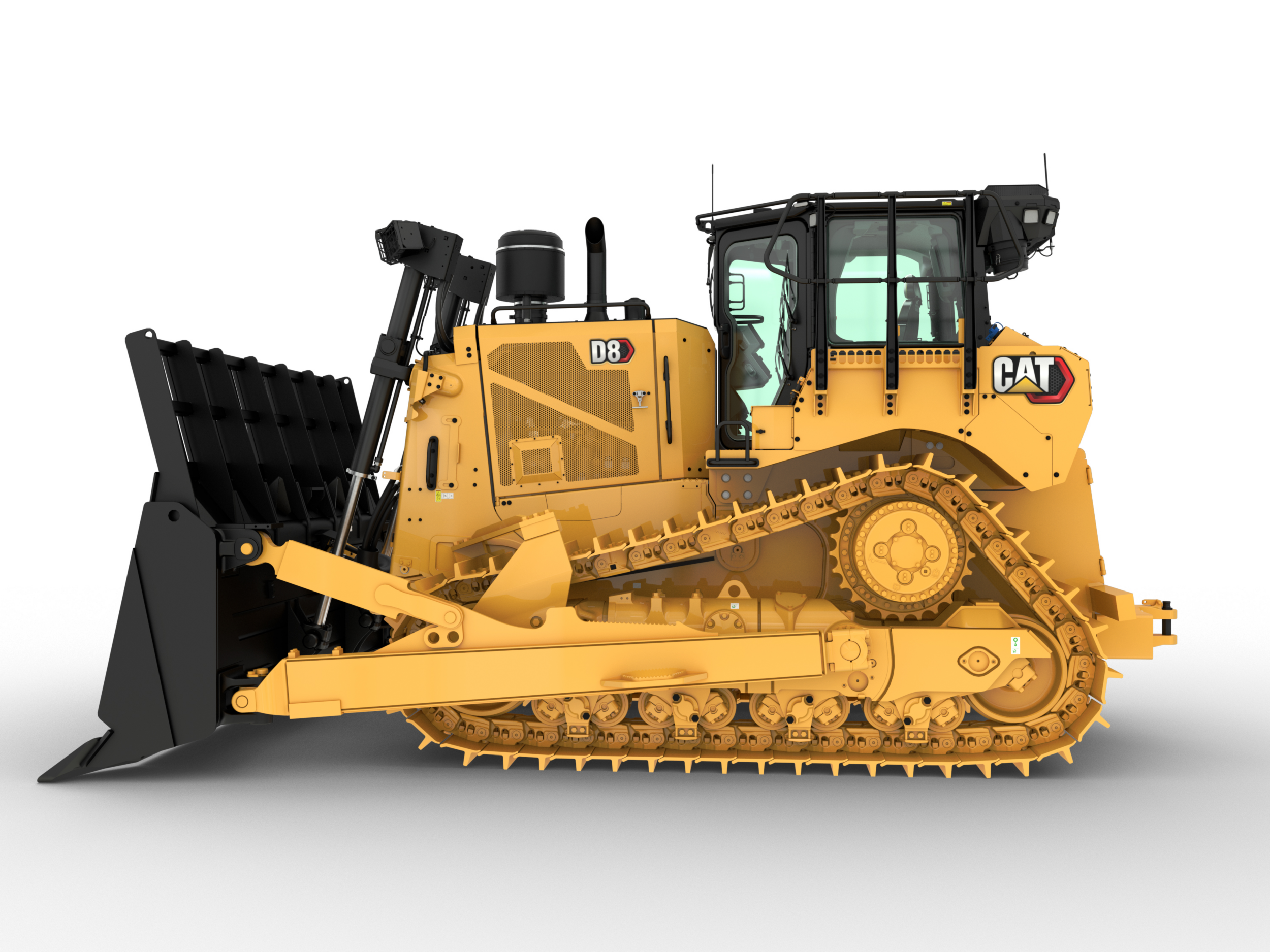

WASTE HANDLING PERFORMANCE
- Cat Waste Handlers are designed and built from the frame up to take on the challenges of landfill work.
- Specialized guarding, striker bars and seals help protect machine and undercarriage from impact, wrapping and airborne debris.
- Impact-resistant polycarbonate cab doors eliminate need for door screens.
- High-debris cooling system with automatic reversing fan and swing-out cleanout access.
- Lights mounted up and away from main debris area for protection, while still giving you plenty of light on the work area.
- Waste undercarriage, center-hole track shoes and landfill blades help optimize performance.
- Laminated thermal shields and insulated Clean Emissions Module.
- Pair with waste handling application profile for preset fan purge durations and Steer Assist blade steer enabled.
CONNECT TO GREATER EFFICIENCY
- VisionLink® provides actionable data insights for all assets– regardless of fleet size or equipment manufacturer.*
- Mixed-fleet management capable with API integration or by using Cat Product Link™ devices on equipment from other manufacturers, so you can monitor owned, rented, or leased assets.
- Review equipment data from your desktop or mobile device with customizable dashboards to provide information such as hours, miles, location with mapping, idle time, asset status, asset operation and fuel utilization.
- Read/Write Remote Troubleshoot saves time and money by allowing your Cat dealer to perform diagnostic testing remotely.
- Remote Flash updates on-board software without a technician being present, at a time that is convenient for you, with the potential to reduce update time.
REMOTE CONTROL READY
- Cab is Remote Control Ready from the factory with external connector for dealer installation of a plug-and-play roof-mounted remote control unit.
- Cat Command for Dozing offers remote control operation. Remote control enables equipment operators to work safely outside the machine when working in hazardous environments.
- Command offers the choice of Consoles (line-of-sight) or long-distance Stations (non-line-of-sight).
- Maintain the use of technology features (Grade, Payload, Assist, etc.) using the touch screens on both the Command Console* and Station.
SUSTAINABILITY
- Optimize machine performance for greatest productivity, while helping improve fuel efficiency and reduce greenhouse gas emissions with a fully automatic 4-speed powershift, which continuously adjusts for maximum efficiency.
- The Cat®C9.3B engine meets U.S. EPA Tier 4 Final, EU Stage V, Korea Stage V, China Nonroad Stage IV emissions standards.
- Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels up to: 20% biodiesel FAME (fatty acid methyl ester) ** or 100% renewable diesel, HVO (hydrogenated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details.
- Cat® Grade with Slope Assist helps you avoid costly rework and wasteful fuel burn and greenhouse gas emissions by automating your blade position without a GPS signal.
- Cat® Grade with 3D automates blade movements using a GPS signal helping you follow a grade design, reducing fuel burn and greenhouse gas emissions by improving efficiency and accuracy.
- AutoCarry automates blade lift to reduce track slip for maximum efficiency on each pass to help lower fuel burn and greenhouse gas emissions.
- VisionLink® displays the CO2 emissions for monitored assets, calculated by fuel type for the Runtime Fuel Burned each day in a selected date range.
- Remote Flash minimizes downtime and maintenance time while keeping your asset running with maximum efficiency. Alerts for machine updates are sent virtually from your Cat dealer and updates can be deployed without a dealer technician needing to be onsite.
- Read/Write Remote Troubleshoot decreases maintenance time and keeps your machine running with maximum efficiency by allowing your Cat dealer to virtually test the machine while working. Once a problem is identified, a technician can fix it the first time, saving time and money.
**Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel.
