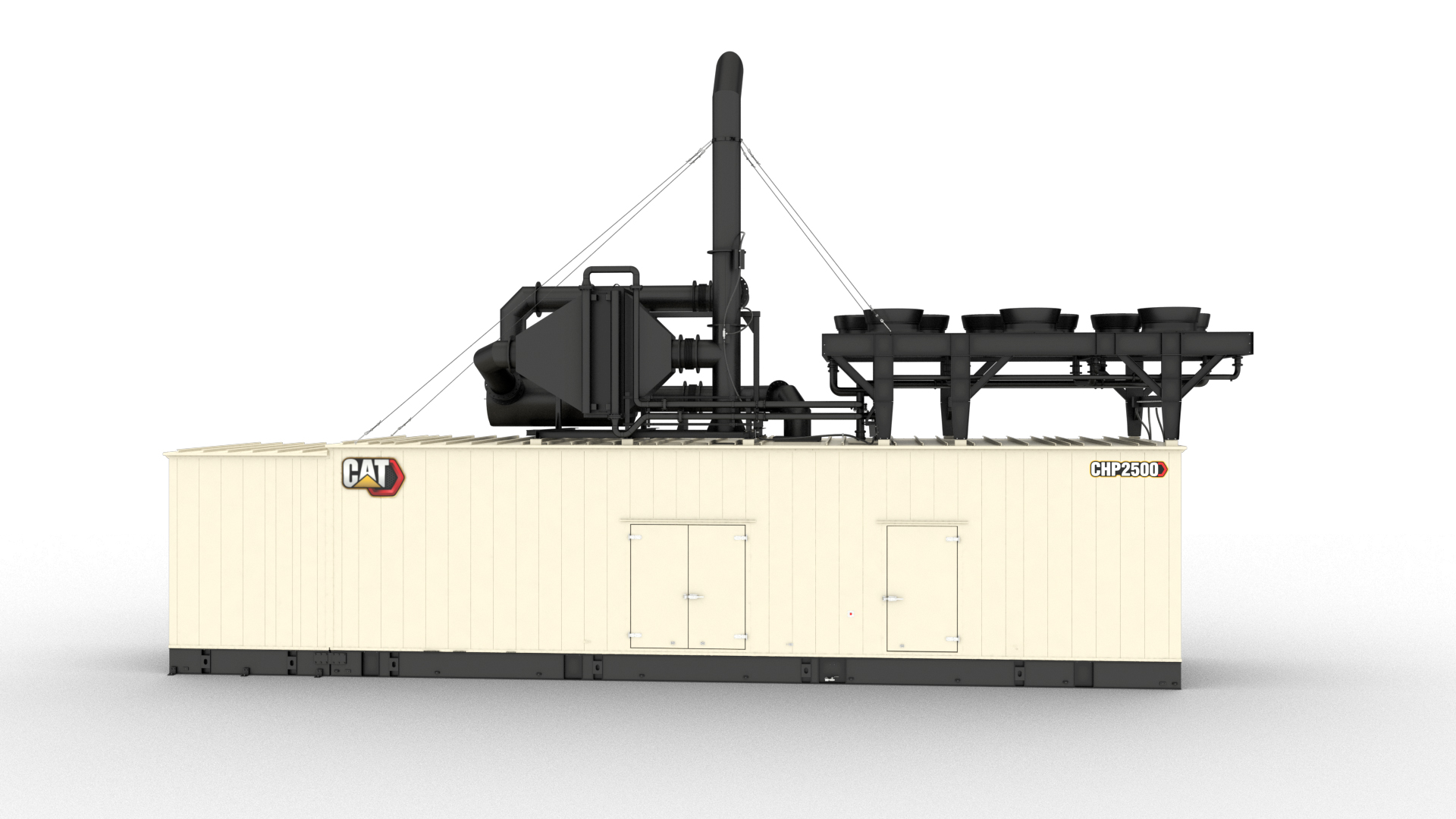

CHP2500 Gas Enclosure Rear Left (no Shadow)
CHP2500 Gas Enclosure Rear Right
CHP2500 Gas Enclosure Front Left
CHP2500 Gas Enclosure Front Right

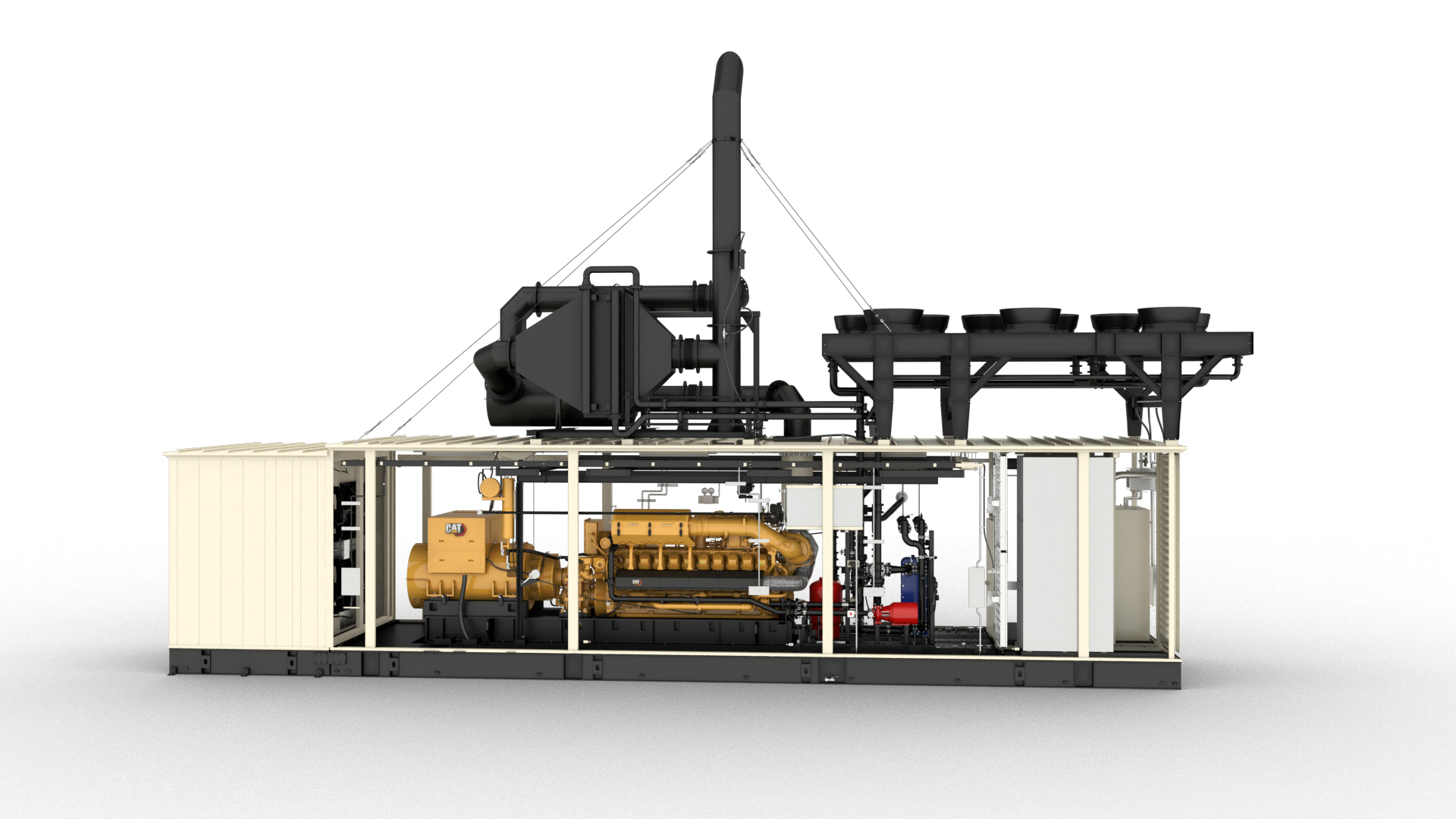

CHP2500 Gas Enclosure Open View Front Right
CHP2500 Gas Enclosure Open View Front Left
CHP2500 Gas Enclosure Open View Rear Left
CHP2500 Gas Enclosure Open View Rear Right
CHP2500 Gas Enclosure Rear Left
G3520H  Gas Generator Set Front Right
G3520H  Gas Generator Set Rear Right
G3520H  Gas Generator Set Rear Left
G3520H  Gas Generator Set  Front Left

CHP2500

G3520H Combined Heat and Power (CHP) Solution Gas Generator

FIND LOCATION

Cat® G3520H Humidity Fuel Tolerant Gas Engine

  • Robust high speed block design provides prolonged life and lower owning operationg costs
  • Designed for maximum performance on low pressure pipeline natural gas
  • Simple open chamber combustion system for reliability and fuel flexibility
  • Leading edge technology in ignition system and air/fuel ratio control for lower emission and engine efficiency
  • One electronic control module handles all engine functions: ignition, governing, air/fuel ratio control and engine protection

CHP Ready

Extensive range of rental ready features to meet job requirements and applications.

Single-Source Supplier

Generator set manufactured in ISO 9001:2000 compliant facility.Package factory designed and production tested.

EMCP 4.3 Control Panel

  • User-friendly interface and navigation
  • Scalable system to meet a wide range of installation requirement
  • Expansion modules and site-specific programming for specific customer requirements

Cat Generator

Cat SR5 generator designed to match the performance and output characteristics of the Cat Gas engine.Class H insulation operating at Class F temperature rise for extended life.System 4 insulation protection and anti-condensation space heaters.Integrated Automatic Voltage Regulation (Cat IVR) provides enhanced system monitoring.

Fuel/Emissions Strategy

Meets most worldwide emissions requirements down to 500 mg/Nm3 NOx level without after treatment.Optional: Oxidation catalyst available

Sound Attenuated Container

Meets 75 dB(A) at 7 meters. Weather Proof enclosure, NSPS factory compliant, UL2200 compliant, and CSA/TSSA. Service and Personnel doors. Separate electrical control room. Internal and External emergency stop buttons at convenient locations.

Proven System

  • Field proven in a wide range of applications worldwide
  • Fully prototype tested
  • Certified torsional vibration analysis available

Reduced Environmental Impact

110% spill containment of onboard engine fluids.Positive crankcase fumes ventilation.

Full Range of Attachments

  • Wide range of bolt-on system expansion attachments
  • Factory designed and tested
  • Flexible packaging options for easy and cost effective installation

Worldwide Product Support

Cat® dealers provide extensive post sale support including maintenance and repair agreements. Supported 100% by the Cat dealer with warranty on parts and labor.

Cooling System

Provides 40⁰C (104⁰F) ambient capability with 500 mg/Nm3 NOx (1g/hp-hr) at 100% continuous rating before derate @ 500m. Variable frequency drive fan controls improve partial load fuel consumption. Energy efficient electric drive fan.
