938

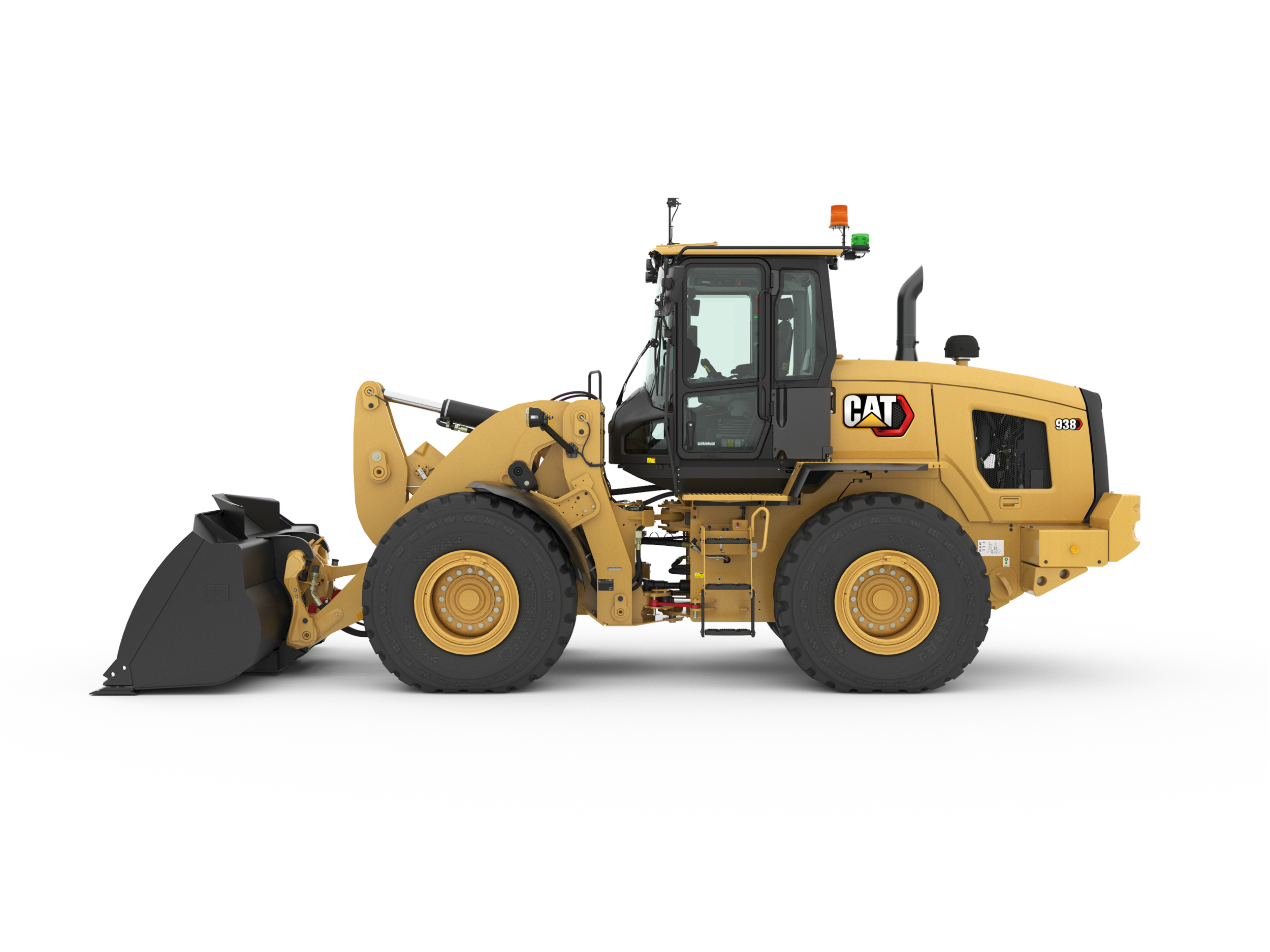

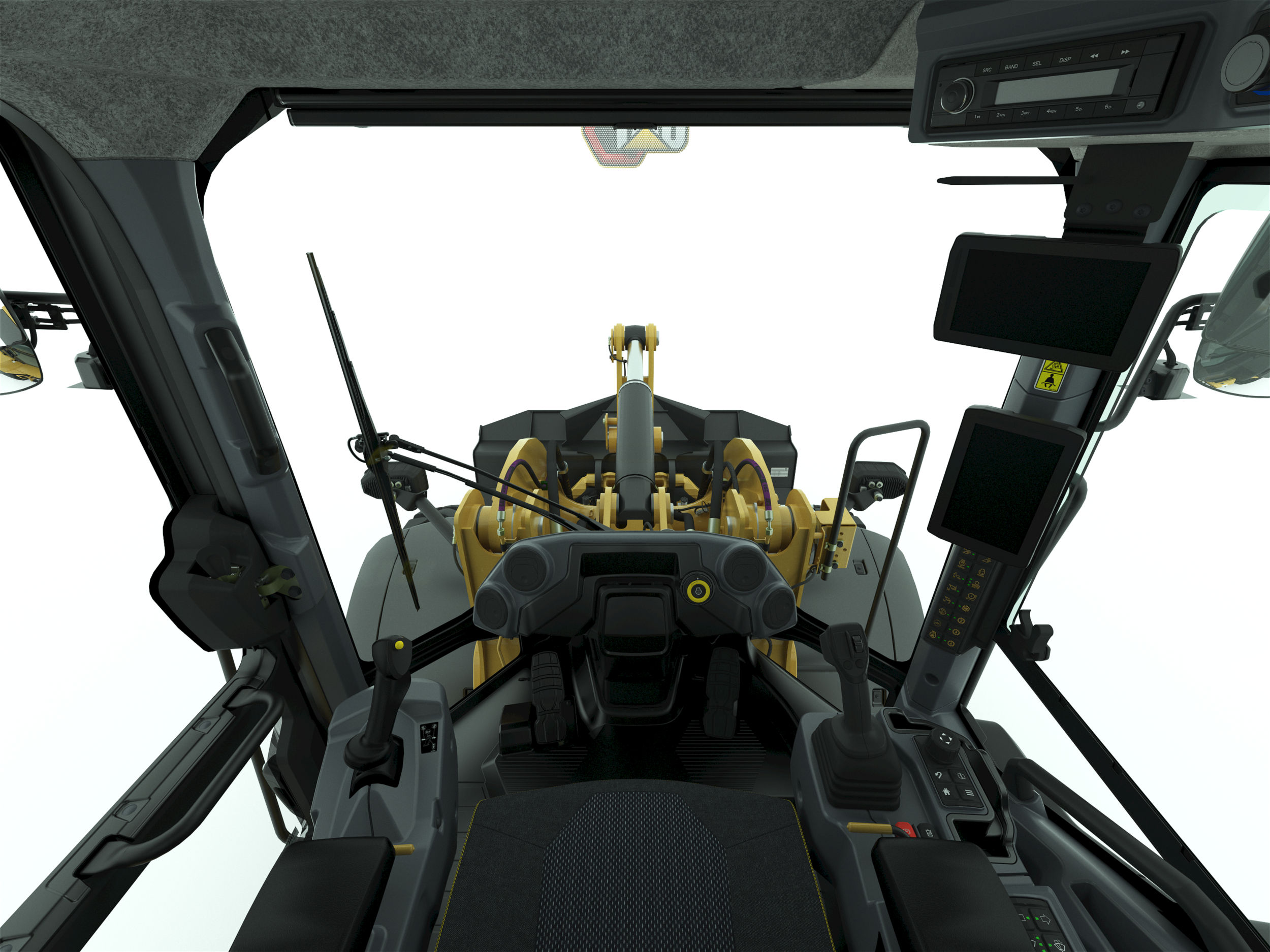

Cat® wheel loaders set the standard for productivity, fuel efficiency, operator comfort and low operating costs. The Cat 938 Small Wheel Loader features a high torque C7.1 engine that works in conjunction with an intelligent hydrostatic power train to deliver exceptional fuel efficiency. Meets U.S. EPA Tier 4 Final and EU Stage V emission standards, designed to manage itself so you can concentrate on your work. Extended service intervals to 1000 hours reduce fluid and filter use by up to 45% (compared to previous M Series models) while keeping operating cost low.
Rated Gross Power - SAE J1995
143 kW
Rated Gross Power - Rated Engine Speed
1800 r/min
Rated Gross Power - SAE J1995 (DIN)
194 mhp
Rated Engine Power - ISO 14396
140 kW
Rated Engine Power - ISO 14396 (DIN)
191 mhp
Rated Net Power - SAE J1349 at Minimum Fan Speed
138 kW
Rated Net Power - ISO 9249 at Minimum Fan Speed
138 kW
Rated Net Power - ISO 9249 (DIN) at Minimum Fan Speed
188 mhp
Maximum Gross Torque - Engine Speed
1400 r/min
Maximum Gross Torque - SAE J1995
912 N·m
Maximum Gross Torque - ISO 14396
900 N·m
Maximum Net Torque - SAE J1349
889 N·m
Maximum Net Torque - ISO 9249
892 N·m
Displacement
7.01 l
Bore
105 mm
Stroke
135 mm
Operating Weight
16115 kg
Operating Weight - High Lift
16425 kg
Steering Cylinder - Bore Diameter
80 mm
Steering Cylinder - Rod Diameter
50 mm
Steering Cylinder - Stroke
399 mm
Maximum Flow - Steering Pump
130 l/min
Maximum Working Pressure - Steering Pump
24130 kPa
Steering Cycle Times (Full Left to Full Right) - Minimum RPM: Pump Flow Limited
3.1 s
Steering Cycle Times (Full Left to Full Right) - Maximum RPM: 90 RPM Steering Wheel Speed
2.3 s
Maximum Flow - Implement Pump
190 l/min
Maximum Flow - Implement Pump - 3rd Function Maximum Flow*
190 l/min
Maximum Flow - Implement Pump - 4th Function Maximum Flow*
160 l/min
Maximum Working Pressure - Implement Pump
28000 kPa
Relief Pressure - Tilt Cylinder
30000 kPa
Relief Pressure - Tilt Cylinder - 3rd and 4th Function Maximum Working Pressure
28000 kPa
Relief Pressure - Tilt Cylinder - 3rd and 4th Function Relief Pressure
30000 kPa
Lift Cylinder: Standard Lift Linkage - Bore Diameter
120 mm
Lift Cylinder: Standard Lift Linkage - Rod Diameter
65 mm
Lift Cylinder: Standard Lift Linkage - Stroke
789 mm
Tilt Cylinder: Standard Lift Linkage - Bore Diameter
150 mm
Tilt Cylinder: Standard Lift Linkage - Rod Diameter
90 mm
Tilt Cylinder: Standard Lift Linkage - Stroke
555 mm
Hydraulic Cycle Time - Raise, Ground Level to Maximum Lift
5.5 s
Hydraulic Cycle Time - Dump (at Maximum Lift Height)
1.5 s
Hydraulic Cycle Time - Float Down, Maximum Lift to Ground Level
2.7 s
Hydraulic Cycle Time - Total Cycle Time
9.7 s
Fuel Tank
195 l
Cooling System
30 l
Engine Crankcase
20 l
Transmission - Gear Box
8.5 l
Front Axles
35 l
Rear Axles
35 l
Hydraulic System - Including Tank
170 l
Hydraulic Tank
90 l
Diesel Exhaust Fluid (DEF) Tank
19 l
Forward and Reverse - Range 2
13 km/h
Forward and Reverse - Range 3
27 km/h
Forward and Reverse - Range 4
40 km/h
Operator Sound Pressure (ISO 6396:2008)
68 dB(A)
Average Exterior Sound Pressure (ISO 6395:2008)
101 dB(A)
Height - Ground to Cab**
3340 mm
Height - Ground to Beacon**
3707 mm
Height - Ground to Axle Center**
685 mm
Height - Ground Clearance**
386 mm
Length - Overall*
7656 mm
Length - Rear Axle to Bumper
1968 mm
Length - Hitch to Front Axle
1525 mm
Length - Wheel Base
3050 mm
Clearance - Bucket at 45°*
2834 mm
Clearance - Load over Height**
3354 mm
Clearance - Level Bucket**
3641 mm
Height - Bucket Pin**
3969 mm
Height - Overall**
5273 mm
Reach - Bucket at 45°*
1146 mm
Carry Height - Bucket Pin
394 mm
Dig Depth**
101 mm
Width - Bucket
2750 mm
Width - Tread Center
2083 mm
Turning Radius - Over Bucket
6120 mm
Width - Over Tires
2693 mm
Turning Radius - Outside of Tires
5546 mm
Turning Radius - Inside of Tires
2843 mm
Rack Angle at Full Lift
54 °
Dump Angle at Full Lift
49 °
Rack Angle at Carry
43 °
Departure Angle
33 °
Articulation Angle
40 °
Operating Weight
16115 kg
Height - Ground to Cab**
3340 mm
Height - Ground to Beacon**
3707 mm
Height - Ground to Axle Center**
685 mm
Height - Ground Clearance**
386 mm
Length - Overall*
8397 mm
Length - Rear Axle to Bumper
1968 mm
Length - Hitch to Front Axle
1525 mm
Length - Wheel Base
3050 mm
Clearance - Bucket at 45°*
3415 mm
Clearance - Load over Height**
3561 mm
Clearance - Level Bucket**
4222 mm
Height - Bucket Pin**
4550 mm
Height - Overall**
5853 mm
Reach - Bucket at 45°*
1413 mm
Carry Height - Bucket Pin
612 mm
Dig Depth**
135 mm
Width - Bucket
2750 mm
Width - Tread Center
2083 mm
Turning Radius - Over Bucket
6483 mm
Width - Over Tires
2693 mm
Turning Radius - Outside of Tires
5546 mm
Turning Radius - Inside of Tires
2843 mm
Rack Angle at Full Lift
53 °
Dump Angle at Full Lift
47 °
Rack Angle at Carry
48 °
Departure Angle
33 °
Articulation Angle
40 °
Operating Weight
16425 kg
Engine Model
Cat C7.1*
Performance Mode
Automatic
Note
*Meets U.S EPA Tier 4 Final, EU Stage V off-highway, and Japan 2014 emission standards.
Note (1)
Advertised power is tested per the specified standard in effect at the time of manufacture
Note (2)
Net power ratings are tested at the reference conditions for the specified standard and denote power available at the flywheel when engine is equipped with alternator, air cleaner, emission components and fan at specified speed.
Note (3)
No derating required up to 3000 m (10,000 ft) altitude. Auto derate protects hydraulic and transmission systems.
Bucket Capacities
1.9-5.0 m3 (2.5-6.5 yd3)
Note
*3rd and 4th function flow is fully adjustable from 20% to 100% of maximum flow through the secondary display when equipped.
Note
DEF used in Cat systems must meet the requirements outlined in the International Organization for Standardization (ISO) standard 22241-1:2019.
Forward and Reverse - Range 1*
1-13 km/h (0.6-8 mph)
Note
*Creeper control allows maximum speed range adjustability from 1 km/h (0.6 mph) to 13 km/h (8 mph) in Range 1 through the secondary display when equipped. Factory default is 7 km/h (4.4 mph).
Standard Size
20.5 R25, radial (L-3)
Other Choices Include
20.5 R25, radial (L-2), 20.5 R25, radial (L-5), 20.5-25 12PR (L-2), 20.5-25 12PR (L-3), 20.5-25 16PR (L-5), 17.5 R25, radial (L-2), 17.5 R25, radial (L-3), 17.5 R25, radial (L-5), 550/65 R25 radial (L-3), Skidder/Agriculture
Note (1)
Other tire choices are available. Contact your Cat dealer for details.
Note (2)
In certain applications, the loader’s productive capabilities may exceed the tire’s tonnes-km/h (ton-mph) capabilities.
Note (3)
Caterpillar recommends that you consult a tire supplier to evaluate all conditions before selecting a tire model.
ROPS
ISO 3471:2008
FOPS
ISO 3449:2005 LEVEL II
Front
Fixed
Rear
Oscillating ± 11 degrees
Air Conditioning
The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.9 kg (4.2 lb) of refrigerant which has a CO2 equivalent of 2.717 metric tonnes (2.99 tons).
Note (1)
European Union Directive 2000/14/EC and UK Noise Regulation 2001 No. 1701.
Recyclability
96%
Note (1)
*Vary with bucket.
Note (2)
**Vary with tire.
Note (3)
Dimensions listed are for a machine configured with 2.5 m³ (3.2 yd³) general purpose Fusion™ bucket, bolt-on cutting edge, standard counterweights, additional guarding, 80 kg (176 Ib) operator and 20.5 R25 (L-3) XHA2 tires.
Note (1)
*Vary with bucket.
Note (2)
**Vary with tire.
Note (3)
Dimensions listed are for a machine configured with 2.5 m³ (3.2 yd³) general purpose Fusion™ bucket, bolt-on cutting edge, standard counterweights, additional guarding, 80 kg (176 Ib) operator and 20.5 R25 (L-3) XHA2 tires.
