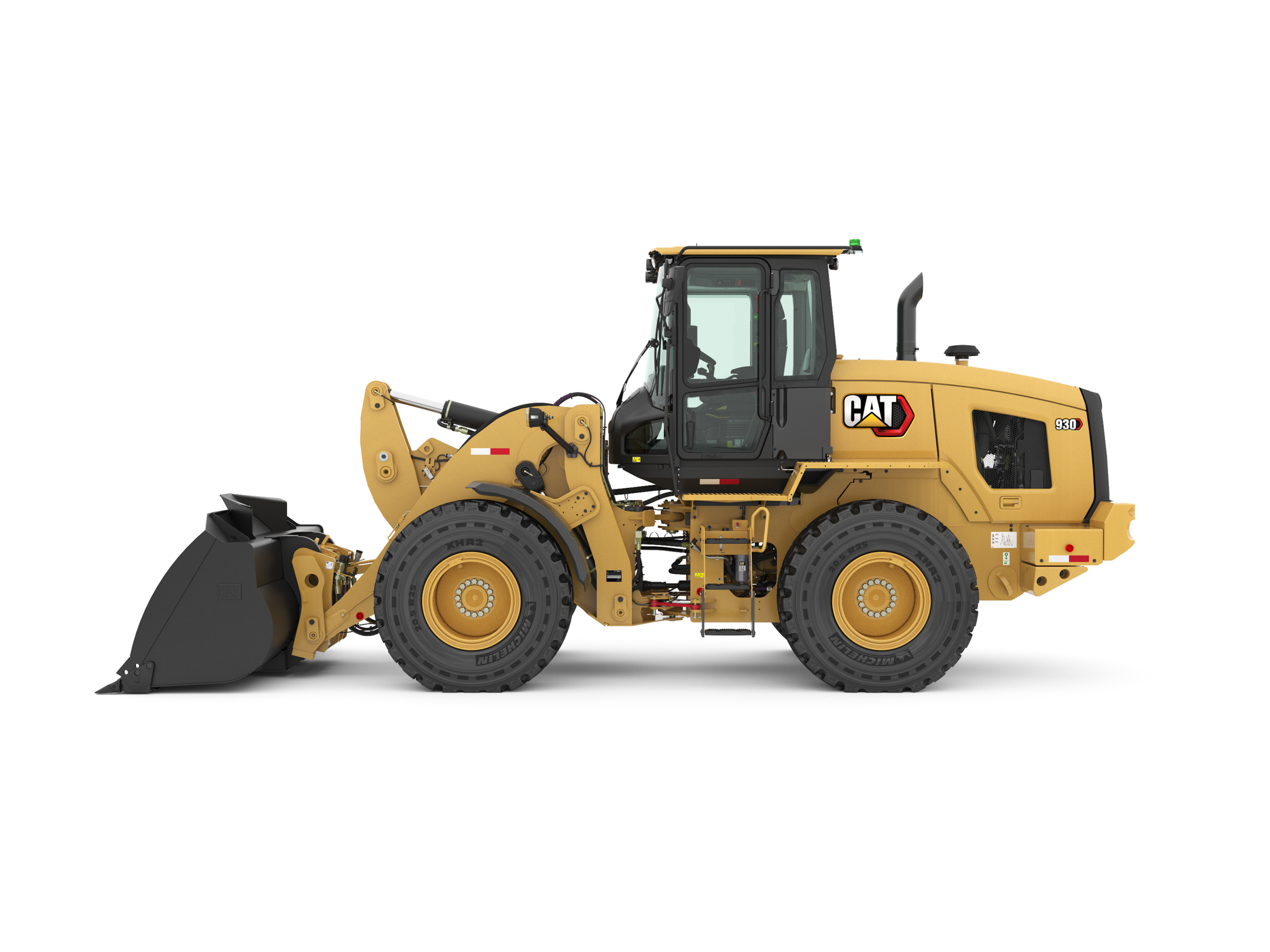

930

Rated Engine Power - ISO 14396

119 kW

Engine Model

Cat C7.1*

Performance Mode

Automatic

Rated Gross Power - Rated Engine Speed

1800 r/min

Rated Engine Power - ISO 14396 (DIN)

162 mhp

Rated Net Power - SAE J1349 at Minimum Fan Speed

116 kW

Rated Net Power - ISO 9249 at Minimum Fan Speed

116 kW

Rated Net Power - ISO 9249 (DIN) at Minimum Fan Speed

159 mhp

Maximum Gross Torque - Engine Speed

1400 r/min

Maximum Gross Torque - ISO 14396

787 N·m

Maximum Net Torque - SAE J1349

753 N·m

Maximum Net Torque - ISO 9249

761 N·m

Displacement

7.01 l

Bore

105 mm

Stroke

135 mm

Note

*Meets Brazil MAR-1 emission standards, equivalent to U.S. EPA Tier 3 and EU Stage IIIA.

Note (1)

Advertised power is tested per the specified standard in effect at the time of manufacture.

Note (2)

Net power ratings are tested at the reference conditions for the specified standard and denote power available at the flywheel when engine is equipped with alternator, air cleaner, emission components and fan at specified speed.

Operating Weight

13246 kg

Operating Weight - High Lift

13472 kg

Bucket Capacities

1.9-5.0 m3 (2.5-6.5 yd3)

Steering Cylinder - Bore Diameter

70 mm
