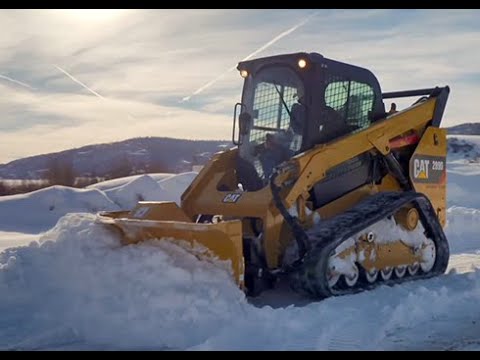

Cat V-Plow Cutting Through Snow
Cat V-Plow Moving Snow In Angle Blade Setup

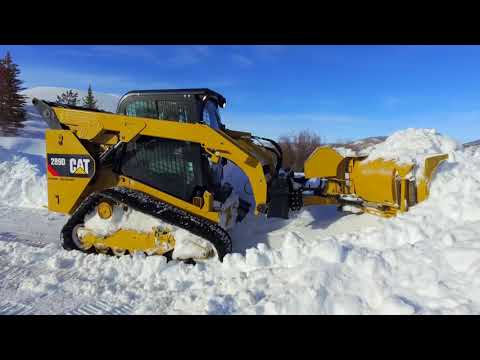

Cat V-Plow Pushing Snow in Scoop Setup

2134 mm (84 in)

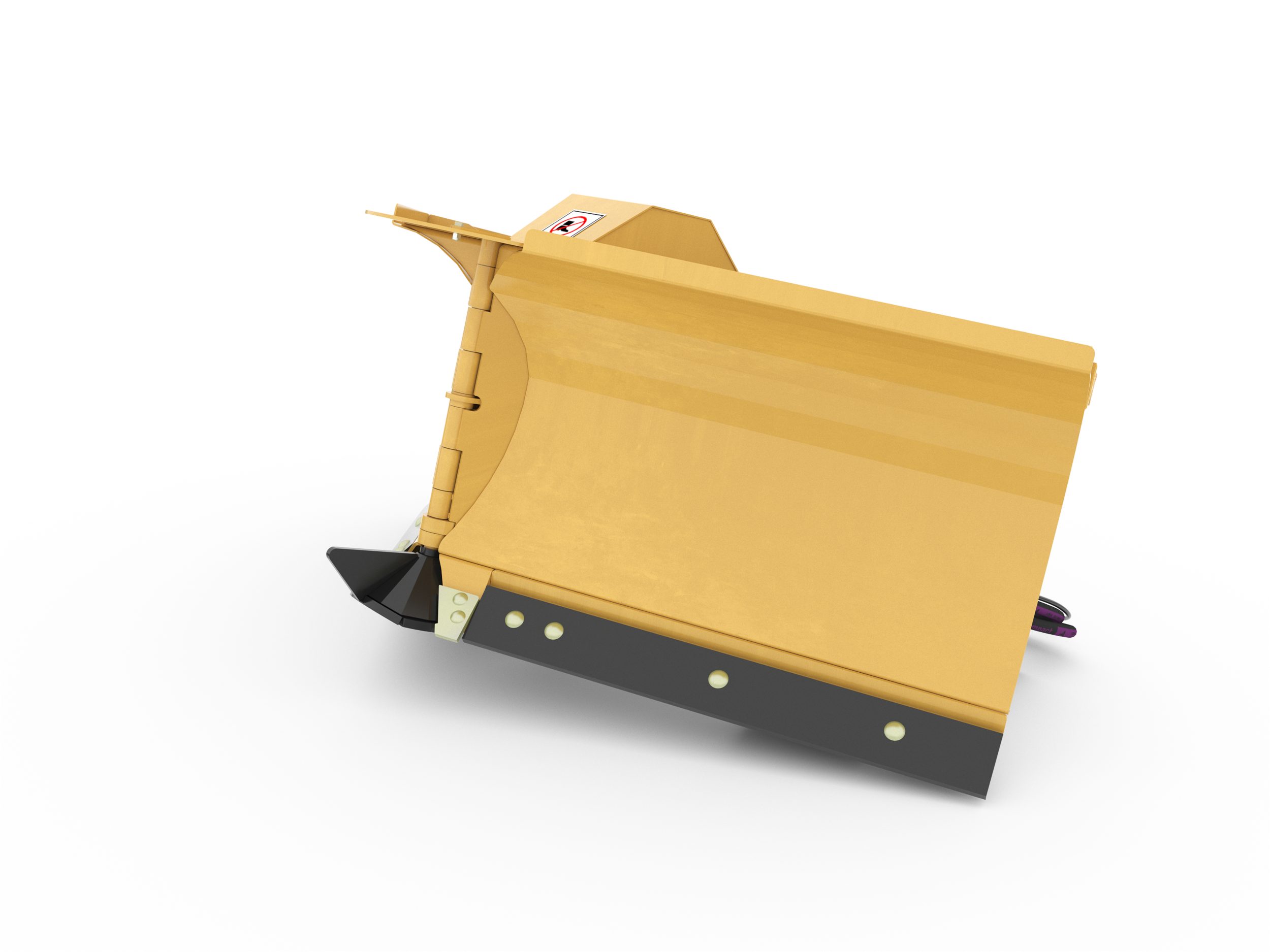

Cat® Multi V-Plows Buckets for Cat Skid Steer Loaders, Compact Track Loaders and Compact Wheel Loaders are a versatile attachment for snow removal applications with the capability to hydraulically angle 5 different blade configurations. Push, plow, sweep, or scoop snow and ice to clear surfaces and restore safe passage to driveways, sidewalks, parking lots, and roadways.


Curved Moldboard

Curved moldboard design rolls and folds the snow while windrowing, minimizing snow clinging to its surface and spilling over the top.

Adjustable Skid Plates

Adjustable skid plates reduce the chances of gouging plowed surface and allow for improved operator control and maintains a constant cutting edge depth.

Blade Float

Blade float allows the plow the ability to pivot up to five degrees about the plow frame allowing the blade to follow surface contours and plow more efficiently.

Adjustable Trip Edges

Adjustable trip edges are incorporated into the base of each wing. Sectioned off moldboard springs back upon contact with unseen obstacles minimizing risk of damage to the v-plow and machine.

Bolt-On Serrated Step

Bolt-On serrated step provides safe and ergonomic access to machine cab that is replaceable if damaged.

V (scoop mode) Blade Configuration

V (scoop mode) blade configuration pushes, collects, piles high or holds snow for removal to another area for final clean up.

V (plow mode) Blade Configuration

V (plow mode) blade configuration quickly cuts initial pathway through deep, hard packed snow piles and drifts.

Right/Left Angled Blade Configuration

Right/Left angled blade configuration quickly and easily windrows snow to the designated side of the machine.

Straight Blade Configuration

Straight blade configuration provides maximum width for piling and stacking snow high and clearing light snow cove.
