140 (12M) grader with push block and ripper
140 (12M) Motor Grader heavy blading
140 (12M) grader leveling roads with Grade technology
140 (12M) Motor Grader spreading rock on roads
140 (12M) grader working on site prep
140 (12M) working on high bank with Grade technology

140

Designed for maximum operator comfort, the Cat® 140 optimizes operational efficiency and productivity. Get the work done with the 140 Motor graders. With ease of operation and service, get the most out of your investment to build and maintain roads.

FIND LOCATION

BETTER COMFORT AND CONTROL

  • Visibility is key to your safety, efficiency and quality of work. The 140 (12M) delivers with angled cab doors, tapered engine enclosure and a sloped rear window make it easy to see the moldboard and tires, as well as behind the machine. Optional rear camera further enhances lines of sight.
  • The most spacious, comfortable cab in the industry.

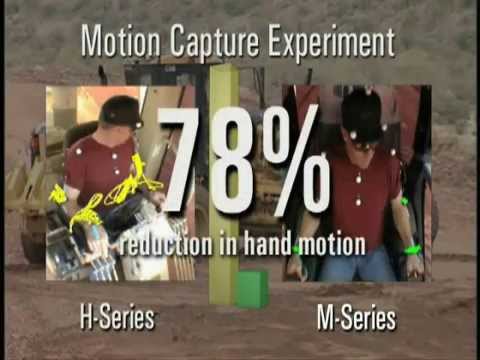

  • Joystick controls reduce hand and arm movement by 78%, which helps to lowers operator fatigue.
  • Easy-reach rocker and control switches
  • Standard Cat Comfort Series suspension seat.
  • Control pods adjust electronically - easy to set ideal operating position.
  • Isolation mounts reduce sound and vibration for more relaxed environment.
  • High capacity Heating, Ventilation and Air Conditioning (HVAC) system dehumidifies and pressurizes the cab, circulates fresh air, seals out dust and keeps windows clear.
  • Optional deluxe radio with CD features MP3 and Bluetooth technology.
  • In-dash instrument cluster houses easily read, high-visibility gauges and warning lamps keep you aware of critical system information.
  • Two electro-hydraulic joysticks make operation easy and comfortable. Adjustable control pods ensure they are positioned for optimal comfort, visibility and operation.
  • Joystick Functions:
  1. Left joystick controls steering, articulation, return-to-center, wheel lean, gear selection, left moldboard lift cylinder and float.
  2. Right joystick controls drawbar, circle and moldboard functions as well as electronic throttle control and manual differential lock/unlock. Joystick lean angle mirrors the steer tires' turning angle.
  • Brake tensioning system holds the joystick in position until the operator moves it.
  • Steering control automatically reduces steering sensitivity at higher ground speeds for predictable control.
  • Infinitely variable roller switches control the rear ripper and/or front lift group (when equipped).
  • Electronic Throttle Control improves productivity providing the best match of power and torque for the demands of each application.
  • Articulation Return-to-Center automatically returns the machine to a straight frame position from any angle with the touch of a button.
Cat 140 (12M) Motor Grader - BETTER COMFORT AND CONTROL

PERFORMANCE AND PRODUCTIVITY

  • Cat C7 engine delivers the performance you need to maintain consistent grading speeds for maximum productivity.
  • Superior torque and lugging capability provide the power to pull through sudden, short-term increases in loads.
  • Engine technology reduces emissions, lowers combustion chamber temperatures and optimizes combustion to generate more work output from every unit of fuel.
  • Hydraulic demand fan automatically adjusts according to engine cooling requirements. When cooling demand is reduced, you benefit from more power to the ground and improved fuel efficiency.
  • Engine Idle Shutdown feature can be software-enabled by your Cat dealer to shut down the engine after a set period of time to save you fuel and help reduce emissions.
  • TheMotor Graders to give you efficiency and stand up to the most demanding applications:
  • Standard Automatic Differential Lock/Unlock unlocks the differential during a turn and re-locks when straight for easier operation and to help protect the power train.
  • Full Electronic Clutch Pressure Control system optimizes inching modulation for smooth shifts and directional changes, reducing stress on gears.
  • Programmable AutoShift option simplifies operation by allowing the operator to program the transmission to shift at optimal points to match each application.
  • Power Shift Countershaft Transmission is matched to the Cat engine to maximize power to the ground.
  • Wide operating gear range for maximum productivity.
  • Engine Over-Speed Protection prevents downshifting until an acceptable safe travel speed has been established.
  • Sealed spindle keeps front axle bearings lubricated and protected from contaminants. Cat “Live Spindle” design places the larger tapered roller bearing on the outside, where the load is greater, extending life.
  • Bolt-on modular rear axle improves serviceability and contamination control with easy access to differential components.
  • Oil-bath, multi-disc service brakes are hydraulically actuated for smooth, predictable braking and lower operating costs. Brakes are located at each tandem wheel and have a large total brake surface area to provide dependable stopping power and longer life.
Cat 140 (12M) Motor Grader - PERFORMANCE AND PRODUCTIVITY

HEAVY DUTY CONSTRUCTION

  • One-piece forged steel circle stands up to high stress loads, and a sacrificial wear system helps keep your service time and costs down.
  • Articulation hitch features a large tapered roller bearing to carry loads evenly. The bearing is sealed preventing contamination and a locking pin prevents articulation during service or transport.
  • The drawbar, circle and moldboard are designed to make it easy for you to keep the components tight.
  • Shims and patented top-adjust wear strips are easy to add or replace, dramatically reducing downtime.
  • Nylon composite wear inserts maximize circle torque and component life.
  • Sacrificial brass wear strips between the blade mounting group and moldboard can be easily adjusted and replaced.
  • Shim less Moldboard Retention System uses vertical and horizontal adjusting screws to keep moldboard wear strips aligned for reduced blade chatter and precise control.
  • With an aggressive blade angle, optimized moldboard curvature and large throat clearance, you work more efficiently by allowing material to roll more freely along the blade.
  • Heat-treated rails, hardened cutting edges and end bits, and heavy duty bolts provide greater moldboard reliability and long service life.
  • Link bar allows extreme moldboard positioning for easier bank sloping and ditch cutting/cleaning.
  • Proven load-sensing and advanced electro-hydraulics give you superior implement control and responsive hydraulic performance that makes operators' jobs easier.
  • Continuously matching hydraulic flow/pressure to power demands reduces heat and optimizes power.
  • Proportional Priority Pressure-Compensating (PPP-C) valves have different flow rates for the head and rod ends of the cylinder, so you can count on consistent, predictable implement response.
  • Hydraulic flow is proportioned to give you confidence that all implements operate simultaneously without slowing engine or implement speed.
  • Blade Float allows the blade to move freely under its own weight.
  • Float both cylinders, to allow blade can follow the contours of the ground.
  • Float one cylinder to permit the toe of the blade to follow a hard surface while the operator controls slope with the other cylinder.
  • Large, independent hydraulic oil supplies prevent cross-contamination and provide proper cooling, reducing heat build-up and extending component life.
  • Cat XT™ hose allows high pressures for maximum power and reduced downtime.
Cat 140 (12M) Motor Grader - HEAVY DUTY CONSTRUCTION

TECHNOLOGY THAT GETS WORK DONE

  • Grade technologies combine digital design data, in-cab guidance, and automatic blade controls to enhance grading accuracy, reduce rework, and lower costs related to production earthmoving and rough, fine and finish grade applications.
  • Cat Grade with Cross Slope is an optional, fully integrated, factory installed system that helps operators maintain desired cross slope by automatically controlling one side of the blade. System is job-ready from day one, and scalable for the future with upgrade kits that provide additional 2D and/or 3D control.
  • Attachment Ready Option can be ordered as a factory- or dealer-installed option. Includes built-in mounting points and internal wiring, to facilitate installation of grade control system.
  • Grade uses positioning and guidance technologies, machine sensors, and automatic blade control to help operators get to grade faster, easier and more efficiently.
  • In-cab guidance gives operators detailed information to work confidently and achieve greater accuracy, in fewer passes, using less material.
  • Operators can stay on grade and improve productivity and accuracy by nearly 50 percent over conventional methods.
  • Grade stakes and checkers are minimized, helping to make the work site safer and more cost effective.
  • Grade technologies include Cross Slope, Sonic, Laser, GPS, and/or Universal Total Station (UTS).
  • Optional Stable Blade system detects bounce through an accelerometer and reduces engine rpm as required at 15 percent intervals to stabilize machine bounce. Once the motor grader has stabilized, Stable Blade will increase engine speed back to the initial set level. The throttle will not be reduced below 1,200 rpm.
  • Cat Product Link™ takes guesswork out of equipment management with remote monitoring capabilities for one machine or an entire fleet.
  • Tracks asset location, hours, fuel usage, diagnostic codes, idle time and more through the secure VisionLink™ user interface.
  • Knowing where your equipment is, what it's doing and how it's performing enables you or your Cat dealer to manage your fleet in real-time so you can maximize efficiency, improve productivity and lower operating costs.*
  • Smart Machine Systems enhance productivity -
  1. Cat Messenger, combined with full systems integration, enhances diagnostic capability for quick analysis of critical data.
  2. Electronic Technician (Cat ET) lets service technicians access stored diagnostic data and configure machine parameters through the Cat Data Link.
  3. Low Battery Elevated Idle raises idle speed when low system voltage is detected, ensuring adequate system voltage and improving battery reliability.
  4. Automatic Engine Deration protects the engine by automatically lowering engine torque output and alerting the operator if critical conditions are detected.

    *Product Link licensing not available in all areas. Please consult your Cat dealer for availability.
Cat 140 (12M) Motor Grader - TECHNOLOGY THAT GETS WORK DONE

BUILT-IN SAFETY FEATURES

  • Operator Presence Monitoring System keeps the parking brake engaged and hydraulic implements disabled until the operator is seated and the machine is ready for operation.
  • Speed Sensitive Steering makes steering less sensitive as ground speed increases for enhanced control.
  • Secondary electric hydraulic steering pump automatically engages in case of a drop in steering pressure allowing operator to steer the machine to a stop.
  • Hydraulic lockout disables all implement functions while still providing machine steering control. This is especially useful while roading.
  • Brakes are located at each tandem wheel to eliminate braking loads on the power train. Redundant brake systems utilize accumulators to enable stopping in case of machine failure.
  • Perforated steel tandem walkways and convenient grab rails provide a sturdy platform when moving on, off and around the machine.
  • Circle Drive Slip Clutch protects the drawbar, circle and moldboard from shock loads if the blade encounters an immovable object and reduces the possibility of abrupt directional changes in poor traction conditions.
  • Blade Lift Accumulators absorb impact loads by allowing vertical blade travel. This optional feature reduces wear and impact loading for enhanced operator safety.
  • Safety Features -
  1. Rearview camera with in-cab monitor
  2. Grouped, ground level service points
  3. Laminated front window glass
  4. Optional LED Lighting
  5. Ground-level electrical disconnect switch
  6. Ground-level engine shutoff switch
  7. Anti-glare paint eases night operation
  8. Front and rear fenders
Cat 140 (12M) Motor Grader - BUILT-IN SAFETY FEATURES

TOP-TIER SERVICE AND SUPPORT

  • Cat motor graders are designed to help you increase uptime and reduce costs.
  • Grouped service points and extended service intervals save maintenance time.
  • Standard Automatic Lubrication System maintains proper lubrication on working surfaces, increasing component life and purging contaminants from pins and bushings - helping to prevent damage.
  • Standard Fast-Fill allows customers to refuel in less than four minutes so you can get back on the job quickly.
  • Your Cat dealer provides support that is second to none. From machine selection and purchase to training, maintenance support and rebuilds, Cat dealers have the experience and capabilities to help keep you up and running.
Cat 140 (12M) Motor Grader - TOP-TIER SERVICE AND SUPPORT
